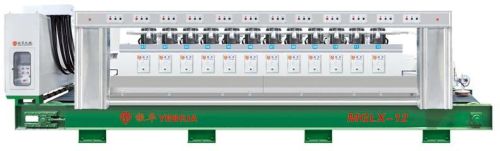

Polishing Machine For Granite Slab

we are offering polishing machine for granite slab.
fetures of mglx-16a polishing machine for granite slab
it adopts plc terminal control system; operator can set the parameters by the programmable controller with lcd screen.it is equipped with trouble alarm and abrasive block consumption alarm systems. it is qualified for continuous grinding and polishing granite stone slabs. the speeds of work piece conveyor and cross beam adopt converters to adjust their speed. its processing width and working pressure of grinding heads are adjustable. each grinding head can rise and fall automatically following the work piece movement. the machine also has the function of avoidance. meanwhile, the main motor of this machine is only 7.5kw with 16 pcs and it uses the common round abrasive, so that it has the high efficiency energy saving and environmental protection function.
we have sold this kind of machine to some factories in china. after long-time inquiry, we have got the probable efficiency data.
specifications
name
quantity
max. polishing width
600mm-1250mm
no. of heads
16 pcs
useful working thickness
13-50mm
useful abrasive
resin abrasive
speed of conveyer belt
0-2200mm
frequency of front-back swing
30 timesm( go and back)
main power
7.5kw-16
journey of air cylinder
125mm
feeding wheel power
1.1kw
swing motor power
2.2kw
