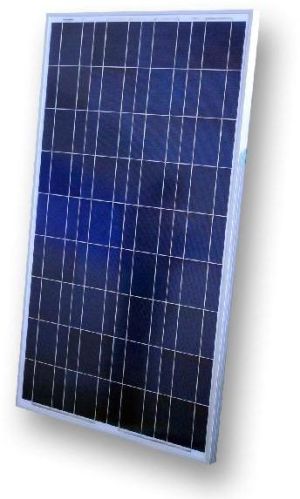

Contact SupplierWe offer poly solar panel 100w. 2.0v
short circuit current (a): 6.33a
number of cells (pcs): 36 (4*9) pcs
size of module (mm): 1005 x 670 x 30mm (156*156mm cell)
temperature range: -40 °c~+85 °c
novt(nominal operating cell temperature): 45 °c ±2 °c
voltage temperature coefficient (voc): -0.38% °c
current temperature coefficient(isc): +0.1% °c
power temperature coefficient (pmp): -0.47% °c
maximum system voltage (v): 1000v
surface maximum load capacity: 60ms(200kgsq.m)
allowable hail load: steel ball dropped from 1 meter
certificates: ce, rohs, iso
output tolerance (%): ±3%
weight per piece (kg): 7.3kg
glass type: 3.2mm tempered glass
junction box type: passed the tuv certified
length of cables (mm): 900mm
connector type: mc4
frame (material, corners, etc.): anodized aluminum alloy
cell efficiency (%): ã¢ï¿½â¥16.8%
module efficiency (%): ã¢ï¿½â¥14.80%
ff (%): ã¢ï¿½â¥73%
standard test conditions: am1.5 100mwcm2 25ã¢ï¿½ï¿½c
warranty: 5 years product warranty, 10years for 90% power ,25years for 80% power;
