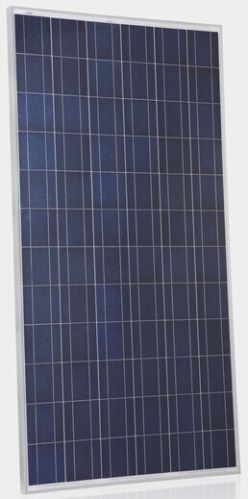

Contact SupplierWe offer poly solar panel 300w. Best prices for solar panels poly 300wp
item no.: sy-300p
cell type: poly-crystalline silicon solar cells
maximum power (wp): 300wp
maximum power voltage (v): 37.20v
maximum power current (a): 8.06a
open circuit voltage (v): 45.20v
short circuit current (a): 8.56a
number of cells (pcs): 72 (6*12) pcs
size of module (mm): 1956 x 992 x 50mm (156*156mm cell)
temperature range: -40テャテつ「テモテつーc~+85テャテつ「テモテつーc
novt(nominal operating cell temperature): 45テャテつ「テモテつーcテャテつ「テモテつア2テャテつ「テモテつーc
voltage temperature coefficient (voc): -0.38%テャテつ「テモテつーc
current temperature coefficient(isc): +0.1%テャテつ「テモテつーc
power temperature coefficient (pmp): -0.47%テャテつ「テモテつーc
maximum system voltage (v): 1000v
surface maximum load capacity: 60ms(200kgsq.m)
allowable hail load: steel ball dropped from 1 meter
certificates: tuv, rohs, ce, iso
output tolerance (%): テャテつ「テモテつア3%
weight per piece (kg): 27kg
glass type: 3.2mm tempered glass
junction box type: passed the tuv certified
length of cables (mm): 900mm
connector type: mc4
frame (material, corners, etc.): anodized aluminum alloy
cell efficiency (%): テモテつ・17.12%
module efficiency (%): テモテつ・15.46%
ff (%): テモテつ・73%
standard test conditions: am1.5 100mwcm2 25 c
warranty: 5 years product warranty, 10years for 90% power ,25years for 80% power;
