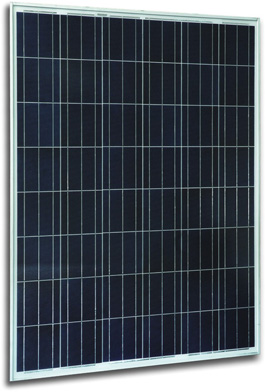

Polycrystalline Solar Panel, Brand Name : Ltd.

We are offering polycrystalline solar panel.
Series number: tm175p-48 - tm195p-48
manufacturer: tm solar power co.,ltd. Jiangyin city, china
high cell efficiency pv solar panel with quality silicon material for long term output stability and reliability.
rigorous quality control to meet the highest international standards.
high transmittance, low iron tempered glass with enhanced stiffness and impact resistance.
unique frame design with high mechanical strength for easy installation.
advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
outstanding electrical performance under high temperature and low irradiance conditions.
48 back-contact polycrystalline si solar cells (approx. 17%).
applications
commercial/ industrial building pv solar roof-top off-grid systems.
residential pv solar roof-top off-grid systems.
any commercial / industrial ground mount off-grid systems.
other off-grid industrial and commercial solar pv applications.
warranty
1.seller should adopt best materials and workmanship to manufacture and supply the above stated commodities to buyer, 100% checked and tuv,vde,ul,mcs standards compliant
2.10 years warranty for not less 90% rated power output, and 25 years for not less 80% output
3.100% dielectrical safety test and checking
4.10 year workmanship warranty, would be enclosed with the supplied products
certifications
tuv sud (iec61215 iec61730) cqc mcs cec
electrical characteristics
all specified parameters are at stc 25℃ambient, 1000w/ m irradiance and am 1.5
type tm175p-48 tm180p-48 tm185p-48 tm190p-48 tm195p-48
max-power pm(w) 175 180 185 190 195
module-power range(w) 180>pm≥175 185>pm≥180 190>pm≥185 195>pm≥190 pm≥195
power tolerance(w) +0~+5 +0~+5 +0~+5 +0~+5 +0~+5
max-power voltage(v) 24 24.4 24.67 25 25.33
max-power current lm(a) 7.3 7.4 7.5 7.6 7.7
short-ciruit current lsc(a) 8.1 8.16 8.3 8.4 8.5
open-circuit voltage voc(v) 29.1 29.2 29.72 30 30.1
max-system voltage(vdc) 1000v(lec)
cell efficiency(%) 15 15.4 15.8 16.3 16.7
module efficiency(%) 13.3 13.7 14.1 14.5 14.8
max.series fuse(a) 15
pm temperature coefficients(w/c) -1.171
lsc temperature coefficients(a/c) 0.0047
voc lsc temperature coefficients(v/c) -0.1261
npct nominal operating cell temperature 47±2 centigrade
mechanical characteristics
cable type,diameter and length 4mm,tuv certified,1000mm
type of connector compatible type iv
number,type and arrangement of cells 48 pcs,poly-crystalline silicon(6×8)
cell size(mm) 156×156
dimension(mm) 1324×992×40
weight(kg) 15
no.of draining holes in frame 10
glass,type and thickness high transmission,low lron,tempered glass 3.2mm
packaging configuration
packing configuration 24pcs/box
quantity/pallet 48pcs/pallet
loading capacity 768pcs/40ft
absolute ratings
dielectric insulation voltage 3000v
operating temperature(centigrade) -40 - +85
storage temperature(centigrade) -40 - +85
compiled by mr.hanson gu, the sales director of tm solar power co.,ltd.
