Polycrystalline Solar Panel, Brand Name : Ltd.

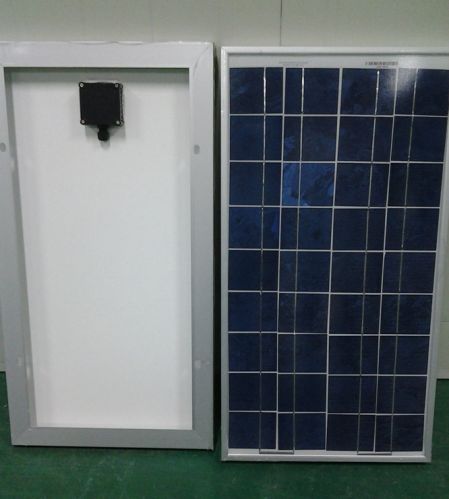

We are offering Poly-crystalline 8W Solar Panel.
Series number:TM008P-36
Manufacturer:TM Solar Power Co.,Ltd. Jiangyin City, China
Applications
Commercial/ industrial building PV solar roof-top off-grid systems.
Residential PV solar roof-top off-grid systems.
Any commercial / industrial ground mount off-grid systems.
Other off-grid industrial and commercial solar PV applications.
Warranty
1.Seller should adopt best materials and workmanship to manufacture and supply the above stated commodities to Buyer, 100% checked and TUV,VDE,UL,MCS standards compliant
2.10 years warranty for not less 90% rated power output, and 25 years for not less 80% output
3.100% Dielectrical safety test and checking
Electrical Characteristics
All specified Parameters are at STC 25C Ambient, 1000W/ m irradiance and AM 1.5
Pmpp Vmpp Impp Voc Isc Temp. Change coefficients Unit
W V A V A Pmpp voltage current Weight
8 18.6 0.43 21.4 0.54 -0.1322w／C -0.1011V/C 0.0013A/C 1.2kgs
Mechanical Characteristics
Cable type,Diameter and Length 4mm,TUV certified,1000mm
Type of Connector Compatible Type IV
Number,type and arrangement of cells 36 pcs, Poly-Crystalline Silicon(4×9)
Cell Size(mm) 82×66
Dimension(mm) 340x625x34
Weight(kg) 1
No.of Draining Holes in Frame 4
Glass,Type and Thickness High Transmission,Low lron,Tempered Glass 3.2mm
Compiled by Mr.Hanson Gu, the Sales Director of TM Solar Power Co.,Ltd.
