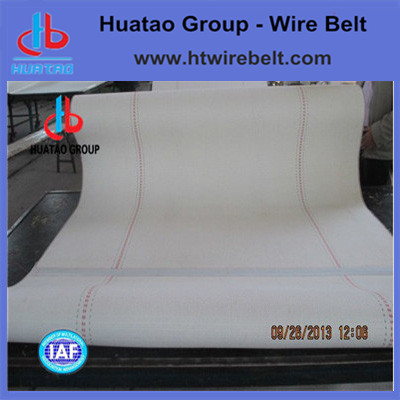

Polyester Corrugated Paper Belt

Polyester corrugated paper belt
products features:
tensile strength: warp direction (63-70) mpa. In dry mode;
heat resistance: raw materials are polyester synthetic fiber, softening point≥260℃
moisture adsorption: quick absorption and emission of heat, therefore cardboard can be quickly dried
air-permeability: up to 2.08m3m2 min, under 40mm water column pressure, through ccep test
seams: belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat-resistance, fastness and non-marking
suitability: suitable for all types of corrugators, various cardboards and some particular operation mode
geometrical dimension: steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard
service life: as long as the same products imported abroad.
rubber seam feature:
suitable for various kinds of heavy-roller corrugators, especially for the new-type
corrugators with flat press device.
Main usage
the solid woven polyestercotton belt is one main special part of corrugated machine automatic production line. Its main function is to ensure that the board transportation and the rapid evaporation of the water inboard.
huatao paper machine fabric factory founded in 1980, is professional manufacturer & exporter of paper machine cloth products.
Our main products including : forming wire(fabric), dryer screen, press felt, spiral dryer screen, sludge dewatering mesh ,corrugator belt
