Contact SupplierThe 2-shed and 3-shed plain fabric is mainly used in special lines, such as paper pulps making, Sulplate pulp packing and cardboard pulp and fiberboard plants, etc.

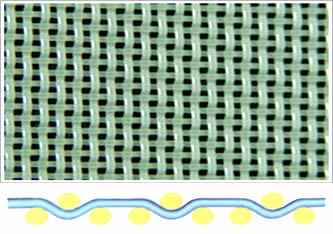

Material of polyester plain fabric: polyester fiber
Color: white or blue
Polyester plain fabric Specification:
Weaving series&
Types
Mode
Diameter of material
mm Density (no./cm)
Strength (n/cm)
Weight
kg/m2 Thickness
mm Permeability
m3/m2h
warp weft warp weft Area of the surface
Joining
Joining with spiral
2-shed plain woven fabric 06802 0.80 0.80 6.05 6.6 1600 650 600 0.85 1.454 10500
07802 0.80 0.80 8 6.3 1600 650 600 1.1 1.454 9500
06702 0.70 0.70 8 7 ≥1600 900 600 0.77 1.3 11000
09452 0.45 0.45 10 8.6 1600 850 600 0.45 0.88 16000
12502 0.50 0.50 13.5 8.5 1800 900 600 0.63 0.95 6500
3-shed plain woven fabric 06803 0.70 0.80 7 5.5 1600 650 600 0.75 1.503 20000
07903 0.80 0.90 7.6 6.5 1600 650 600 1.25 1.703 10000
08603 0.50 0.60 10 9 1600 900 650 0.59 1.15 14000
07803 0.70 0.80 8 8 1600 900 650 0.80 1.35 10000
20353 0.30 0.35 22 14.5 1200 750 600 0.31 0.60 13000
20403 0.30 0.40 22 14 1200 750 600 0.35 0.70 13500.
