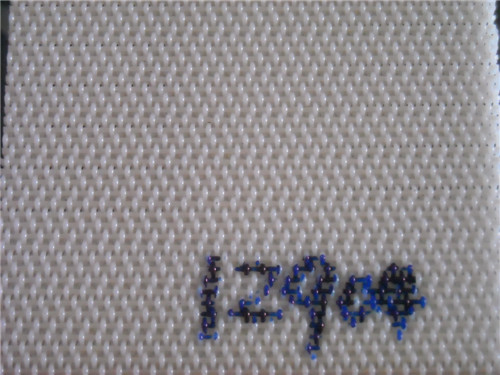

Polyester Sludge Dewatering Belt

We are offering polyester sludge dewatering belt.
Materials: polyester fiber.
Uses and features:
this product is specially designed for wastewater treatment plants as sludge dewatering mesh belt. It enjoys the features of air and water permeation, while not allowing the sludge. Due to its unique structure, the sludge will get easily off the belt after filtration. Easy cleaning and long service life.
Model wire diameter
mm density
root10cm air permeability
m3m2h net weight
gm2 strength
kgcm used in
warp weft warp weft
wnw14803 0.7 0.8 142 47-60 3900-
8500 1400 240 sludge,
squeeze juice
wnw16803 0.7 0.8 156 46-50 6000 1400 265 sludge,
squeeze juice
wnw16904 0.75 0.9 156 47 8000 1800 280 iron and steel industry sludge dewatering
living sludge dewatering
wnw121054 0.9 1.05 120 42 8000 1650 340 iron and steel industry sludge dewatering
wnw22903 0.5 0.9 220 50-55 9000-
10000 1200 200 living sludge dewatering
wnw20703 0.5 0.7 200 70 10000 1000 185 living sludge dewatering
chemical sludge dewatering
gw24504 0.5 0.5 240 130-140 8500-
10000 1180 220 paper dry network
paper sludge dewatering
wnw08903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
wnw16704 0.7 0.7 160 90 12000 1350 265 building materials industries
wnw26908 0.5 0.9 26.4 69-75 5000-
5500 1364 240 viscosity of the larger
sludge
cxw12 mesh 0.75 0.8 47 48   650 94 paper pulp washing
major technical data
special specifications can be produced by the customer's requirements.
