General :

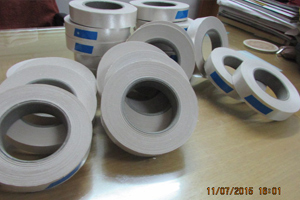

Dry, flexible, epoxy resin bonded, polyester film backed muscovite/phlogophite mica paper. Can withstand more than 155ºC.
Application:
Broadly used in High Tension Coils.
Product Properties:
Sizes:
Sheets of 1000 mm
Tapes :
Tapes : 12.5 mm to 50 mm (standard) [as per customers requirement]
Shelf Life :
Standard Temperature of 20º C ± 5ºC - 12 months
N.B. :
Specific customer requirements can be catered.
| Properties | Unit | Standard Value |
| Muscovite/Phlogophite Mica Paper | g/m² | 75 ± 4 |
| Resin Content | g/m² | 15 ± 3 |
| Polyester Film | g/m² | 0.35 ± 2 |
| Tensile Strength | N/cm | ≥ 30 |
| Breakdown Voltage | KV/Layer | ≥ 5 |
| Thickness | mm | 0.085 ± 0.005 |
| Total Weight | g/m² | 90.35 ± 9 |
