Polyurethane Vibrating Screen Mesh

We offer Polyurethane Vibrating Screen Mesh Combines Steel Wire and Urethane.
Polyurethane vibrating screen mesh become increasingly popular in recent years. Vertical and horizontal of the line is made of high wear resistant polyurethane and with the steel wire inside. The tensile and wear resistance is about 3 to 10 times higher than the metal vibrating screen mesh, so it can improve the service life.
A piece of polyurethane vibrating screen mesh on the ground.
Both the vertical and horizontal line is made of polyurethane outside and steel wire inside
It has high strength, stiffness and load capacity than crimped vibrating screen mesh and perforated vibrating screen mesh. It can effectively reduce the noise and improve the efficiency of the separating and sorting. Polyurethane vibrating screen mesh can separate both dry and wet levels of gravels, sand rocks, ores and it can be used in the dewatering industries.
Specification
Material: Steel wire inside and polyurethane outside.
Thickness: 20mm - 60 mm.
Opening size: 0.6mm - 160mm.
Screen type: Modular polyurethane screening and tensioned polyurethane panels.
Hole type: Comb, square, oblong, round, fine mesh sieve screen.
Connection types: Mosaic, bolt, layering connection, screen hook connection.

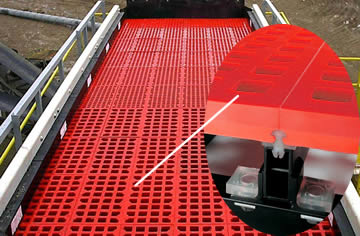

Red polyurethane vibrating screen mesh is covered on the machine.
Mosaic connection type of polyurethane vibrating screen mesh.Several orange polyurethane screen mesh is connected by the green bolts and a detail picture in the bottom light corner.
Bolt connection type of the polyurethane vibrating screen mesh.Red polyurethane vibrating screen mesh is installed on the machine with the layering connection.
Layering connection type of the polyurethane vibrating screen mesh.Double deck of the vibrating machine, the top layer is covered by he polyurethane and the under deck is covered by the crimped vibrating screen mesh.
