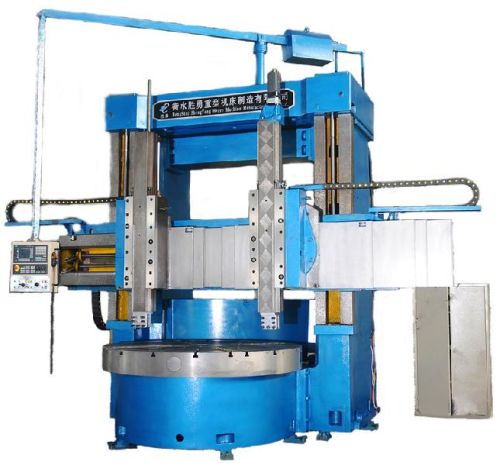

Popular CNC Vertical Turning Lathe Machine

We are glad to recommend our popular cnc vertical turning late to you. CNC vertical turning lathe can be used for mechanical processing such as rough and finishing machining inside and outside the cylinder, inner and outer conical surface, head face,grooving etc. The lathe machine is designed by FEA (Finite Element Analysis). Worktable base adopts high strength and high rigid cast iron material, to improve stability and absorb vibration. Unique thermal symmetric structure reduces thermal deformation of worktable, to ensure the worktable a long-term stability.

Technical specification of CNC vertical turning lathe machine in stock for sale  C5240
1 Maximum turning diameter 4000 mm
2 Maximum Height of workpiece 1600200025003000 mm
3 Maximum Weight of workpiece 102032 t
4 Table diameter 3150 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
8 Horizontal travel of tool post 2150 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 5575
11 Machine weight(about) 42-58t
12 Overall dimensions(L×W×H)
8010×4400×4680mm
8010×4400×5080mm
8010×4400×5600mm
8010×5569×6230mm
