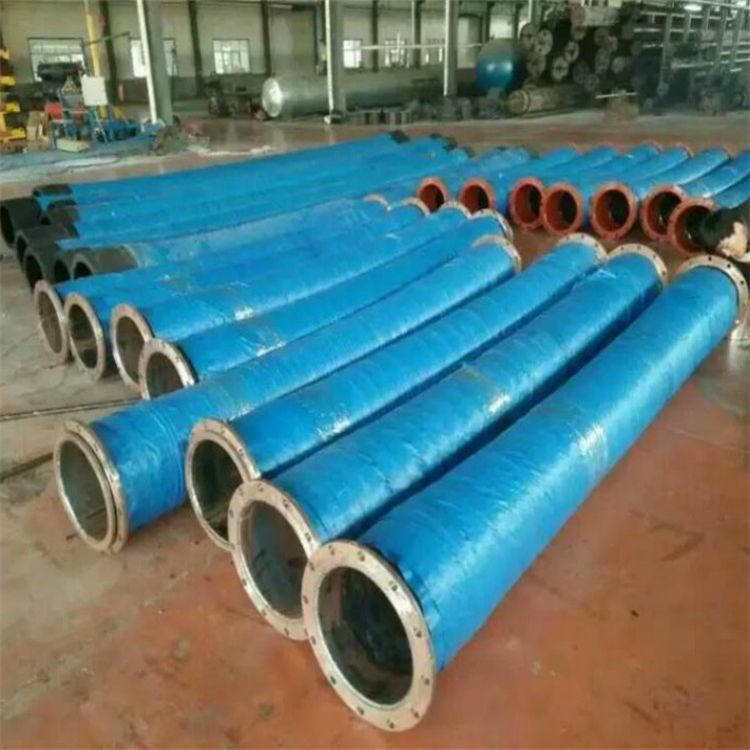

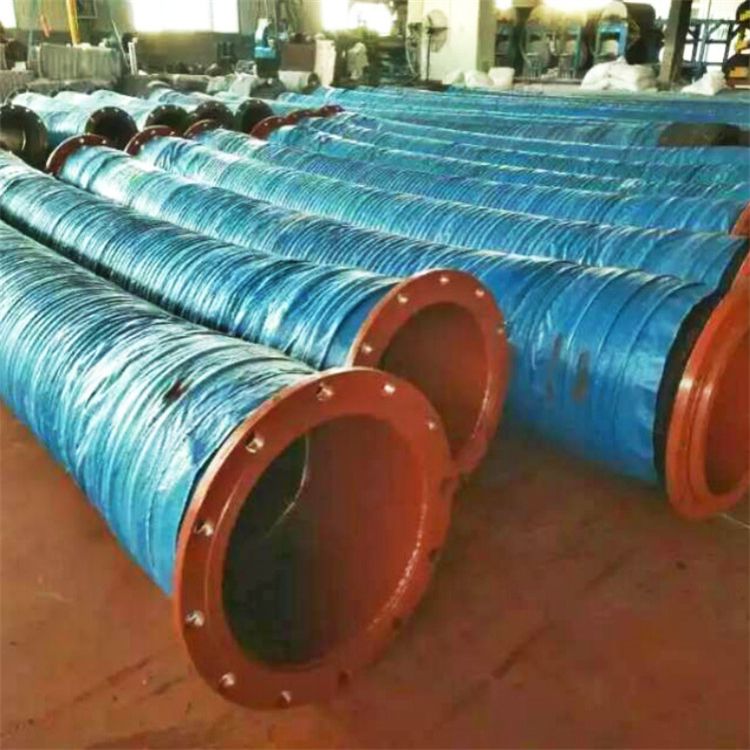

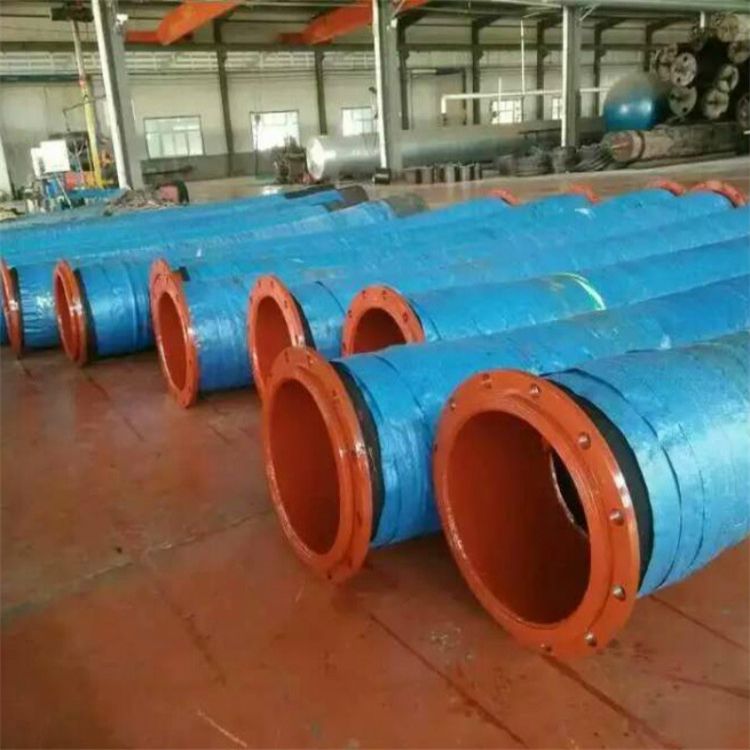

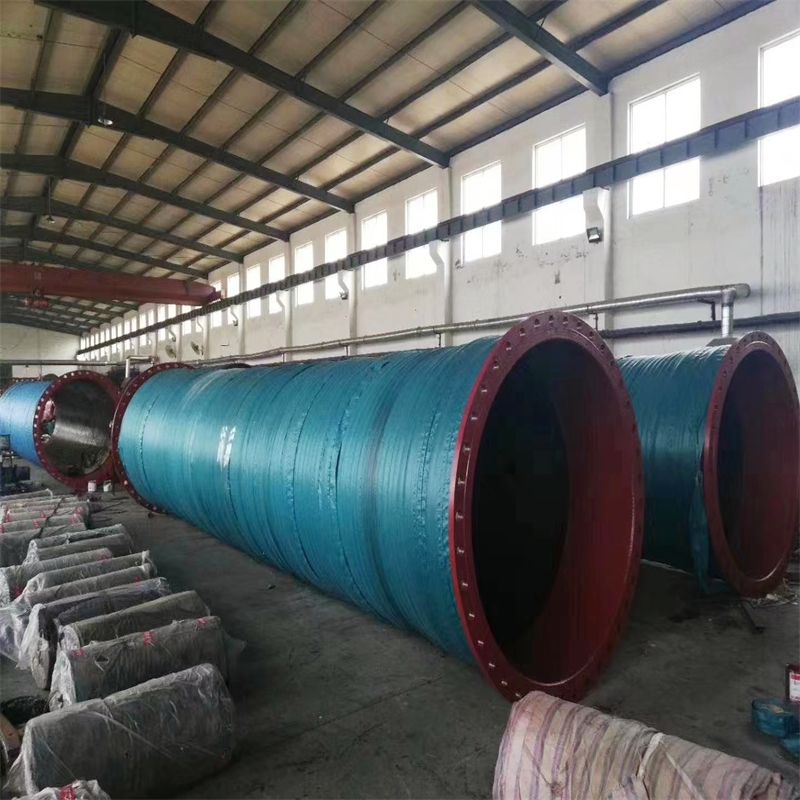

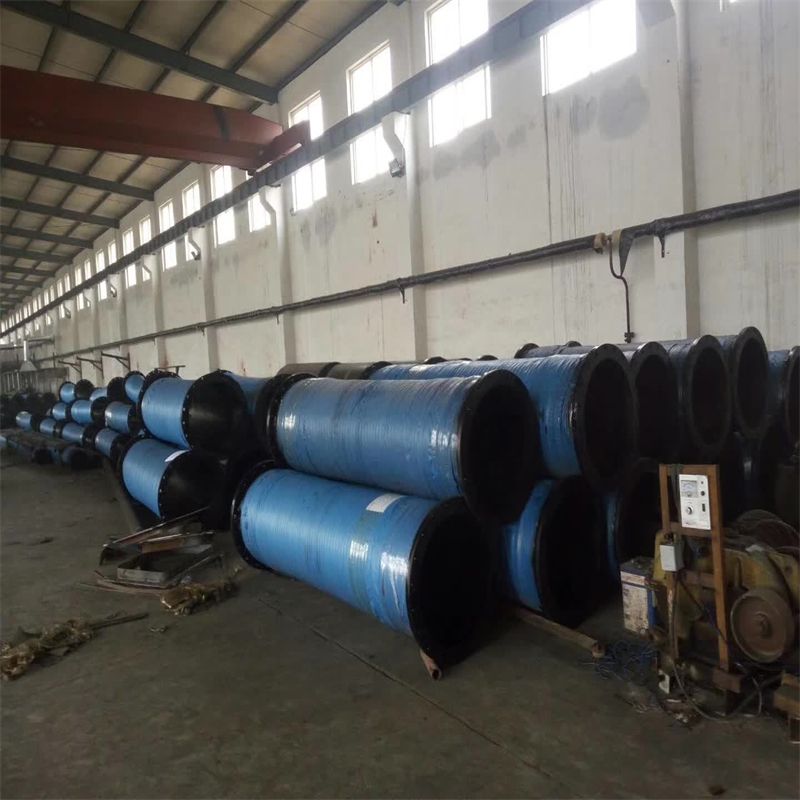

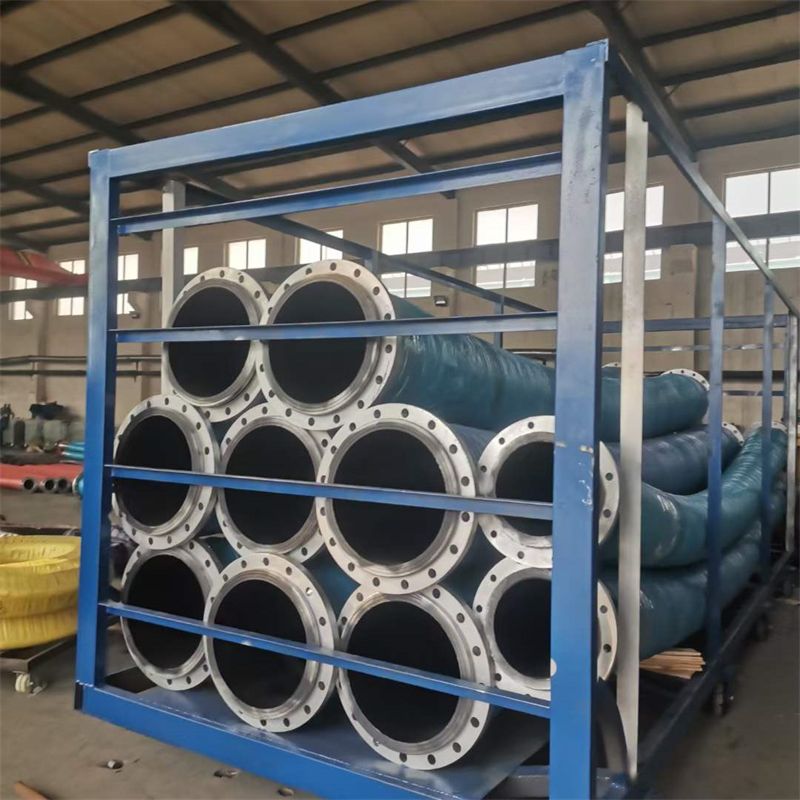

Rubber Port Dock Construction Hose, Brand Name : Biaohui

₹ 4,525 / 400 Meter

MaterialRubber,RUBBER
Brand NameBiaohui
ShapeRound
ColorBlack
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

Brand NameBiaohui
MaterialRubber,RUBBER
ShapeRound
ColorBlack
PressureMedium
UsageIndustrial Use, Be Used For Abrasive And Corrosive Materials Delivery,And It Is Also Used For Flood Discharge. Besi
Country of OriginChina

Port and dock construction hose suitable can be used for abrasive and corrosive materials delivery, and it is also used for flood discharge. Besides, it is also used for port and dock construction and this is port and dock construction hose. It is very flexible and it can be connected to pipeline tightly by flanges. And it is highly resistant to abrasion, corrosion and seawater, so it is becoming more and more popular in port and dock construction. Port and dock construction hose is composed of three parts: tube, reinforcement and cover. Tube is made from high quality synthetic rubber (NR, SBR and BR), making hose resistant to abrasion and corrosion. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to bending, kink, fatigue and wave. Besides, reinforcement makes hose have solid structure and suitable for high working pressure environment. Cover is made from synthetic rubber (NR, SBR and BR), making hose resistant to abrasion, corrosion, seawater, weather, ozone and aging.

The details of port and dock construction hose:

Structure: composed of three parts: tube, reinforcement and cover.
- Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
- Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
- Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
Working temperature: 20 °C to 80 °C.

The specification of port and dock construction hoseHose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamPDCH-01PDCH-02PDCH-03PDCH-04PDCH-05PDCH-06PDCH-07PDCH-08PDCH-09PDCH-10PDCH-11PDCH-12PDCH-13

6	152	7-1/4	184	12	1.2	24	2.4	0.8	80	20
8	203	9-1/5	233	24	2.4	24	2.4	0.8	80	20
10	254	11-1/5	284	10	1	20	2	0.8	80	10
12	304	13-2/5	340	10	1	20	2	0.8	80	6 - 10
14	355	15-2/5	390	10	1	20	2	0.8	80	6 - 10
18	457	19-1/5	487	7	0.7	15	1.5	0.8	80	6 - 10
22	560	23-3/5	600	7	0.7	15	1.5	0.8	80	6 - 10
24	635	25-3/5	650	7	0.7	15	1.5	0.8	80	6 - 10
28	711	29-3/5	752	7	0.7	15	1.5	0.8	80	6 - 10
32	813	33-1/2	850	5	0.5	10	1	0.8	80	6 - 10
40	1016	41-1/2	1054	5	0.5	10	1	0.8	80	6
48	1219	49-1/5	1250	5	0.5	10	1	0.8	80	6
52	1320	53-1/5	1350	5	0.5	10	1	0.8	80	6
We can manufacture port and dock construction hose according to customers' requirements, such as material, length, inner diameter, outside diameter.
