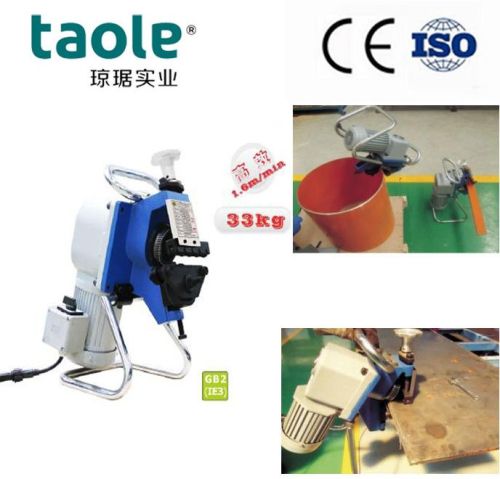

Portabel Plate Beveling Machines

This series machine is mainly for Metal Plate Edge Beveling & Chamferring for welding preperation.It is widely used in some aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.
Note: This model with multi function to Process both Metal Plate and Pipe tube
Model No.
GBM-6D
Power Supply
AC 380V220V 50Hz
Motor Power
400W
Clamping Plate Thickness
4-16mm
Min.Processing Plate Width
�55mm
Net Weight for Machine
33kg , 39KG (Including Car)
Beveling Width
Single beveling width: 6mm
Max. beveling width: 8mm
Beveling Angle
25°, 30°, 35°, 40°, 45°( Match bevel angle)
Beveling Speed
1.2 - 1.8mmin
Packaging Details
1. 540*640*740mm,NW:33KG, GW:55KG
2.540*640*740mm,NW:45KG,GW:60KG (Including Car)
Range of application
This type machine, which is mainly used in aerospace, shipbuilding, metallurgy, pressure vessels, petrochemical and welding manufacturing fields, can process low carbon steel, stainless steel, aluminium alloy etc.
Features:
High quality transmission reducer with efficiency and stability.
Shock absorption to move with fast bevelling.
Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
Low noise while processing by imported motor.
Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
Feeding used efficient gear system.
Electrical wiring comply with CE standard and safty systerm.
Special parts used high wear-resisting and hardness material
Favourite price for a high quality tool.
Accessories & parts and tools will be offered in a tool box with manual .
