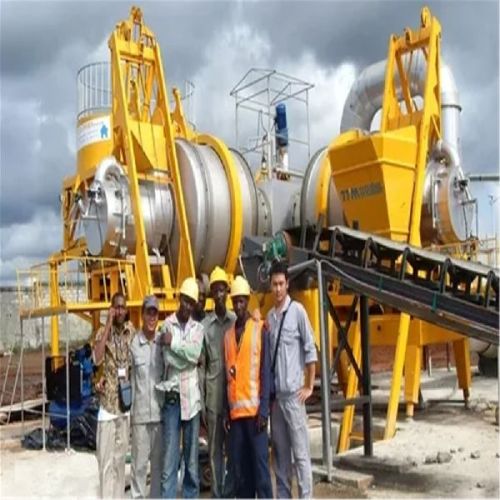

Portable Asphalt Batch Plant

High quality portable asphalt batch plant product description mobile asphalt batching plant using twin-horizontal shafts force mixer saves stirring time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms are made of special wear-resisting material and they can work longer. Material-addedgate with double air cylinder is in turning form which saves time and increase the sealing. It consists of dryer drum, burner, central venting, forced mixer and finished silo. Features    1.  integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt;2.  accurate weighing, and stable quality;3. simple structure, easy operation, drying while drum rotate in counter clockwise direction(from burner),discharging    while drum rotates in clockwise direction(from burner),and the wind are swirled in the center of the drum;4.  plc control, touch screen, auto/manual switchable;5. Towing chassis of easy transport and installation;6. Burner is available for coal and oil, at client's option. Technical parameters of asphalt mixing plant mobile force asphalt mixing plant type qlb-10 qlb-15 qlb-20 qlb-30 qlb-40 qlb-60 qlb-80 capacity 10t/h 15t/h 20t/h 30t/h 40t/h 60t/h 80t/h power diesel 41.5kw 54kw 63.5kw 104.5kw 125kw 157.5kw 200kw power coal 57.5kw 75kw 86.5kw 127.5kw 169kw 205kw 276kw aggregate batcher     2.3m3×3 2.3m3×3 5m3×3 5m3×3 5m3×4 storage bin 2t.
