Listing ID #1873150
Company Information
Ask for more detail from the seller

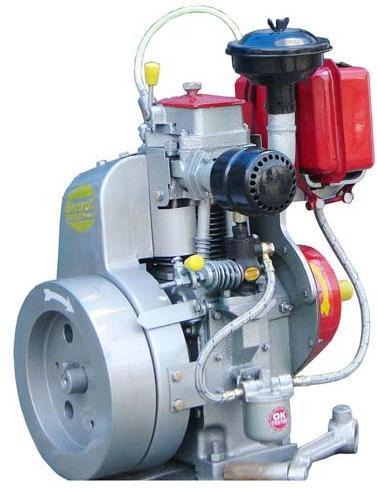

Contact SupplierOne of the reliable names offering quality assured and perfectly designed Portable Diesel Engine; we are amidst the renowned names in the domain. The Engines (Portable Diesel) are designed according to the set international standards. Under the administration of veteran professionals, the production process commences to bring forth the best results. Staffed with a pool of hardworking employees, their utter dedication, commitment helps us to deliver the Engine in specified time.
Sr.No | Product Name | KCA-ST5 | KCW-ST5 |
---|---|---|---|
1 | Full name | 85MM 5HP AC | 85MM 5HP WC |
2 | Model Name | KCA-ST5 | KCW-ST5 |
4 | Bore | 85MM | 85MM |
5 | Stroke | 80 | 80 |
6 | Cubic Capacity (CC) | 453 | 453 |
7 | No of Cylinder | Single | Single |
8 | Compression Ratio | 16.5:1 | 16.5:1 |
9 | Rated Speed RPM | 1500 | 1500 |
10 | Injection Method | DI | DI |
14 | Horse Power | 5HP | 5HP |
15 | Max.torque NM @ RPM | 3.1 | 3.1 |
16 | Method of Starting | Handle | Handle |
17 | Engine Cooling Method | Airc Cooled | Water Cooled |
18 | Oil Sump Capacity | 1.4 LTR MIN - 1.6 LTR MAX | 1.4 LTR MIN - 1.6 LTR MAX |
19 | Grade Of Oil | SAE 40 | SAE 40 |
20 | Fuel Tank Capacity | 6.5 Ltr | 6.5 Ltr |
21 | (L x W x H) in mm | 420 x 430 x 640 | 420 x 430 x 640 |
22 | Engine Weight (Dry) with Fiting Exclusiv pkg | 90 | 90 |
23 | Engine Gross Weight | 120 | 120 |
