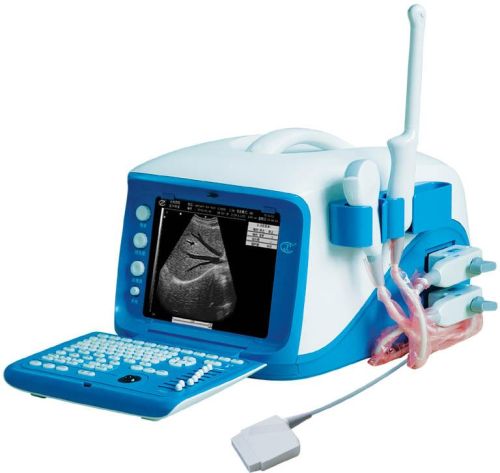

Portable Digital Ultrasound Scanner, Brand Name : CX

We are offering portable digital ultrasound scanner.
Cx6000
the equipment will be used for inpatient and outpatient diagnosis of animal liver, gallbladder, spleen, kidney, pancreas, heart, bladder, uterus, accessories and urinary system.
operation functions of equipment
four display format: b,b+b,4b,b+m,m; image grey scale: 256 levels; freezing, real time, selective enlargement, upwardsdownwards and leftright turnover of the image can be realized; 8 stage tgc adjustment; 18 types of body mark; full-screen character annotation; fixed character, real time clock and calendar; electron focusing, free combination of focus; various probe for choice, enough to meet requirement of clinical diagnosis; frequency conversion: 2.0mhz -8.0 mhz; image magnification: *1.0,*1.2,*1.5,*2.0. The utmost depth of detection is 240mm; measuring: distance, perimeter, area, volume, pregnant weeks etc. Heart rate and slope can be measured under m mode; built-in dstn processor, pal-d and vga video transmission, external screen monitor, colorful screen, video tape recorder, video image printer etc; movie replay function, uninterrupted replay or step forwardbackward replay for 256 images can be realized; having the function of 'flash in','flash out', 'dream in', 'dream out' and 'usb'; with the optional function of 4 segments frame correlation
components of structure
the instrument is consist of mainframe, probe and monitor,. It can be connected with medical image work station, printer, and color monitor. And the scanning modes are electron convex array and electron liner array. The main probe is 3.5mhz(r=60) electronic convex array, the selective probe are 6.5 electronic convex array(housing r=13)and7.5 mhz surface probe.
