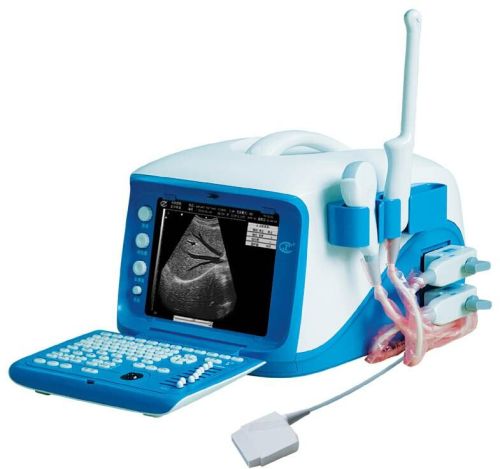

Contact SupplierWe are offering sh1000 portable digital ultrasound scanner.
Main technical features:
monitor: 10 inch
scanning mode: b、 b+b、 b+m、 m 、4b
image gray scale: 256
tcg adjustment: 8 segments
depth adjustment: 40mm-240mm
storage: u plate
dynamic range: 100 db
focus adjusting: available
cine loop: 512
partial zoom: 2.0 (real time and frozen)
depth promote: in b、b+b mode
reversal: updown, leftright
measurement &calculation: distance, area, circumference, heart rate depth and valve speed. Obstetric checking software: for bpd; fl; crl; gs; hc; ac; fetus weight, delivering date, pregnancy time.
Display info: patient information input: date and registration code display, full screen wording function.
Body marks: 60
usb port: available
power consumption: <150va
configuration:
3.5mhz (80 elements, r=50mm) convex probe
options:
7.5 mhz (80 elements) high frequency linear probe
3.5 mhz (80 elements, r=20mm) cardiac probe
6.5 mhz (80 elements, r=11mm) trans-vaginal probe
trolley
lcd monitor
mitsubishi p93c thermal printer.
