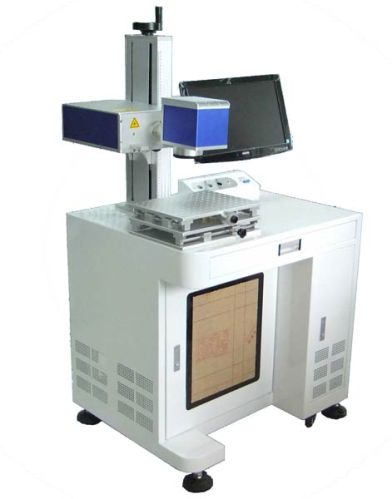

Contact SupplierWe are offering portable fiber laser marking machine-syl-fb-10a, description:
portable style fiber laser marker whose core components are all imported, adopts germanic technology. It has a long lifetime of more than 100,000 hours with usb card controlling and clever structure design. It can be used in various places with the features of light weight, portability and small volume. The galvanometer can be rotated 90 degrees on request, and mark from the sideways (suitable for assembly line work.
model
syl--fb-10a
syl-fb-20a
max laser power
10w
20w
marking area
70mmã�70mm100mmã�100mm150mmã�150mm optional
min line width
0 .02mm
laser wavelength
1064nm
max marking speed
12000mms
repetition rate
20khz~100khz
machine power
�250w
cooling method
air
machine weight
10kg
dimension
1188ã�600ã�1320(mm)
application field
mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (ic), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.
