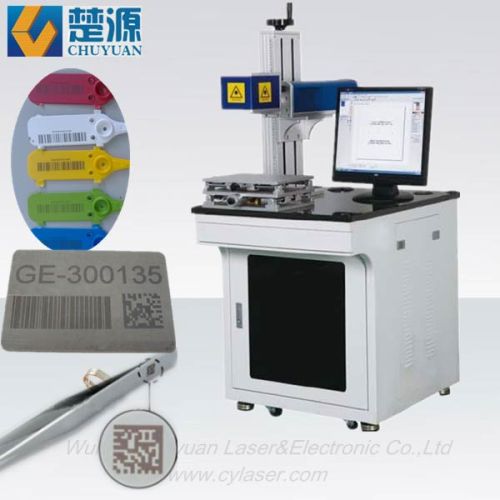

Portable Fiber Laser Marking Machine, Brand Name : Chuyuan

We are offering portable fiber laser marking machine.
10w 20w 30w portable fiber laser marking machine
1)features:
cy-mr(10-20w) is professional portable fiber laser marking machine that use the most advanced fiber laser generator in the world. it adopts advanced beam election mode and shaping technology, which ensure a high output power and excellent beam mode.
1>minimum marking line is 0.05mm.and you can adjust the marking line as 1.5mm.
2>ezcad is graphic software,almost same as coreldraw.
3>our laser engraver include red dot positioning.
4>it is about 100000 hours free maintenance.
5>tem00 output beam,high beam quality
6> low energy consumption,0.5kwhour,small size,air cooling
2)application
with much higher beam quality than the traditional flash and semiconductor pumping solid laser marking machine,our fiber laser marking machine especially suitable for high precision, fine marking.widely applied in integrated circuit chips, computer accessories, batteries, industrial bearings, clocks and watches, electronic and communication products, aerospace components, all kinds of auto parts, home appliances, hardware tools, dies, wire and cable, food packaging, jewelry, and military poisoning in fields such as graphics and text markup
3)tech data
model
cy-mr(10-50w)
laser wavelength
1064nm
rated laser output power
10203050w
beam radiation angle
≤2mrad
marking area diameter
70mm110mm220mm(optional)
marking depth
0.01-0.2mm(depend on the material)
marking breadth
0.01-0.1mm(depend on the material)
least significant
0.2mm
scan speed
7000mms
scanning system
laser vibration lens
pulse breadth
0.2ms-10ms
modulation frequency
20-80khz
laser model
fiber laser
collimating location way
red beam indication
working voltage
220vmonophasic50hz
main machine power
0.5kw
machine weight
65kg
software support
coreldraw,autocadp,photoshop,lt
