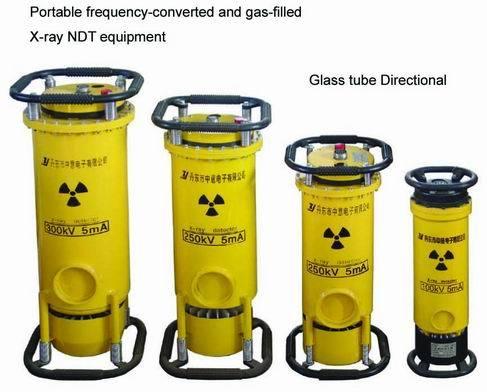

Portable Frequency-converted and Gas-filled X-ray NDT Equipment

Model Power(KW) Beam Angle Max.Penetration A3 steel (mm)
Weight(kg) Dimensions (mm) output voltage(kv)
XXHA-1605 >1.5 360°×30° 15 15 210×210×620 60－160
XXHA-2005 >2.0 360°×30° 24 20 207×270×665 80－200
XXHA-2005L >2.0 360°×30° 24 16 210×210×620 80－200
XXHA-2505 >2.5 360°×30° 34 35 320×320×720 130－250
XXHA-2505L >2.5 360°×30° 34 23 270×270×640 130－250
XXHA-3005 >3.0 360°×30° 40 44 340×340×820 150－300
XXHA-3005L >3.0 360°×30° 40 35 320×320×720 150－300
XXHA-3505 >3.5 360°×30° 50 42 340×340×820 200－350
Glass tube flat Panoramic
Index :
Model
Power(KW) Beam angle Max.Penetration A3 steel (mm) X-ray generator output voltage(kv)
Weight(kg) Dimensions (mm)
XXH-1005 >1.0 360°×25° 6 11 160×160×520 40－100
XXH-1605 >1.5 360°×25° 18 15 210×210×620 60－160
XXH-2005 >2.0 360°×25° 26 20 207×270×665 80－200
XXH-2005L >2.0 360°×25° 26 16 210×210×620 80－200
XXH-2505 >2.5 360°×25° 36 35 320×320×720 130－250
XXH-2505L >2.5 360°×25° 36 23 270×270×640 130－250
XXH-3005 >3.0 360°×25° 46 44 340×340×820 150－300
XXH-3005L >3.0 360°×25° 46 35 320×320×720 150－300
XXH-3505 >3.5 360°×25° 56 42 340×340×820 200－350
Glass tube Directional
Index:
Model
Power(KW)
Beam angle Max.Penetration A3 steel (mm) X-ray generator
output voltage (KV)
Weight(kg) Dimensions (mm)
XXQ-1005 >1.0 40° 8 11 160×160×520 40－100
XXQ-1605 >1.5 40° 20 15 210×210×620 60－160
XXQ-2005 >2.0 40° 29 20 207×270×665 80－200
XXQ-2005L >2.0 40° 29 16 210×210×620 80－200
XXQ-2505 >2.5 40° 39 35 320×320×720 130－250
XXQ-2505L >2.5 40° 39 23 270×270×640 130－250
XXQ-3005 >3.0 40° 49 44 340×340×820 150－300
XXQ-3005L >3.0 40° 49 35 320×320×720 150－300
XXQ-3505 >3.5 40° 59 42 340×340×820 200－350
Model Power(KW) Beam angle Max. Penetration A3 steel(mm) Ｘ-ray generator Out voltage(KV)
Weight(kg) Dimension(mm)
XXG-2005Z >2.0 360°×25° 26 20 207×270×570 80－200
XXG-2005ZL >2.0 360°×25° 26 14 210×210×580 80－200
XXG-2505Z >2.5 360°×25° 36 32 320×320×640 130－250
XXG-2505ZL >2.5 360°×25° 36 20 270×270×580 130－250
XXG-3005Z >3.0 360°×25° 46 37 340×340×720 150－300
XXG-3005ZL >3.0 360°×25° 46 31 320×320×640 150－300
XXG-3505Z >3.5 360°×25° 59 37 340×340×740 200－300
Model Power(KW) Beam angle Max. Penetration A3 steel(mm) Ｘ-ray generator Output voltage(KV)
Weight(kg) Dimension(mm)
XXG-1605 >1.5 40° 20 14 210×210×580 60－160
XXG-2005 >2.0 40° 29 20 207×270×570 80－200
XXG-2005L >2.0 40° 29 14 210×210×580 80－200
XXG-2505 >2.5 40° 39 32 320×320×640 130－250
XXG-2505L >2.5 40° 39 20 270×270×580 130－250
XXG-3005 >3.0 40° 49 37 340×340×720 150－300
XXG-3005L >3.0 40° 49 31 320×320×640 150－300
XXG-3505 >3.5 40° 59 37 340×340×740 200－350
