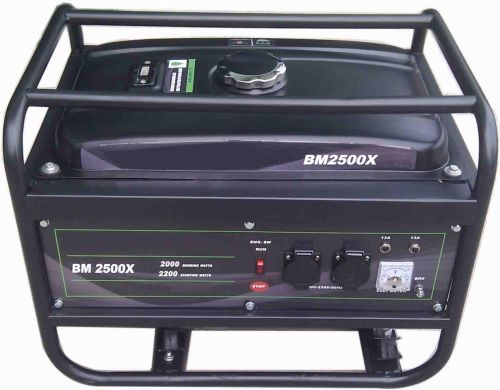

Contact SupplierWe are offering Portable Generator.
generator set:
rated frequency (hz) 50 60
rated output (kva) 2 2.2
max.output (kva) 2.2 2.5
rated voltage (v) 110/220 115/230 120/240
rated speed (r/min) 3000
general-purpose accessory:
phase no single phase
power factor (cosφ) 1.0
insulation grade f
dc output 12v/8.3a
structure type open frame
short circuit protection with
engine
engine model df160
engine type air-cooled 4-stroke ohv25° inclined single cylinder 3600
ignition system transistorized magneto
oil capacity(l) 0.6
cylinder no,-bore×stroke(mm) 68*45
displacement [cc] 163
max rated power(hp) 5.5
lubrication system pressure splashed
fuel type unleaded petrol
starting system recoil /electric
low oil-pressure protection facility automatic safety stop
fuel volume(l) 15
continuing time(hr) 12
length / width / height (mm) 590 * 455 * 455
net weight (kg) 46.
