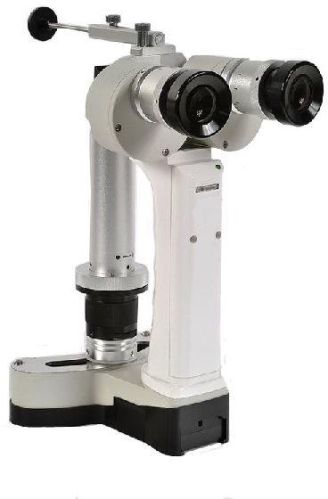

Contact SupplierHigh quality portable slit lamp microscope
workable with phone eyepiece adapters
model: vc-psl
ce marked
features:
light weight, only weight 0.75kgs;
easy for single hand operating;
linkable eyepieces;
total 2 magnifications:10x,16x;
white led illumination for lifelong use;
four filters: heat-absorption, red free, grey, cobalt blue;
ideal for pediatrics, veterinary surgeon, nursing home, out study and education;
workable with universal smartphone eyepiece adapter to photography and video.
Technical parameters:
type binocular crossed stereo microscope
objective lens 1x
eyepieces 10x,16x (optional)
total magnifications 10x,16x
pupillary distance 52~72mm
working distance 80mm
slit illumination
slit width 0~10mm continuously adjustable
slit height 0.5mm, 3mm, 5mm, 10mm
spot diameter 0.5mm, 3mm, 5mm, 10mm
slit rotator angle horizontal 30
diopter compensation 5d
filters heat absorption, grey, red-free,
cobalt blue
illumination white led lamp
working hours 5~6 hours
voltage ac110v~220v
frequency 60hz50hz
input power 18va
accessories inside the carrying case:
2 eyepieces
2 head-rests
2 li-batteries
1 charger
1 lock
