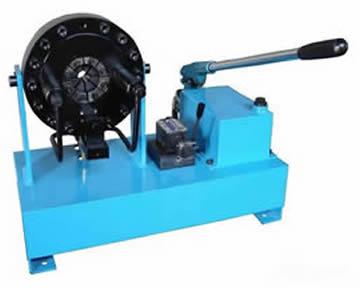

Portable Hose Crimping Machine

We are offering portable hose crimping machine. Portable hose crimping machines are similar to manual hose crimping machines. Hose crimping machine can be carried to the job site at any time in the condition of a light weight and easy operation. Our manual hose crimping machines are able to fulfill your requirements in weight and technical design. In the manual hose crimper page we have already given customers the reasons. In this page we are glad and pleasant to offer our portable hose crimping machines. There are two types of portable hose crimping machines and weight 69kg and 80kg. And they are used for crimping hoses within the diameters of 66mm.
features and benefits:
the portable hose crimping machines manufactured by our company are passed the standard of iso9001. They are in excellent quality and at a competitive price. In the appearance they are nice in the blue color like the sky. In terms of noise, the products only make low noise but easy to operate therefore you can have a better working environment to improve the efficiency.
portable hose crimping machine for 49mm hoses
portable hose crimping machine for 49mm
technical parameters:
max hose size: 1 inch 4sp
crimping force: 1370kn
max opening: die diameter + 10mm
crimping range (mm): 8mm to 49mm
dimensions (l×w×h mm): 450×280×340
weight: 69kg
standard die sets
size range (mm) length
25-08 8-11 40
25-11 11-14 40
25-14 14-17 40
25-17 17-20 40
25-20 20-23 45
25-23 23-26 50
25-26 26-31 50
25-31 31-34 55
25-34 34-39 60
25-39 39-49 60
portable hose crimping machine for 66mm hoses
the lightweight portable hose crimping machine in sky color
technical parameters:
max hose size: 1-14 inch 4sp
crimping force: 1200kn
crimping per hour: 500
max opening: die diameter + 18mm
motor: 2.2kw - 230400v 3ph option: 2.2kw - 230v 1ph
crimping range (mm): 4mm to 66mm
dimensions (l×w×h mm): 600×400×490
weight: 80kg
