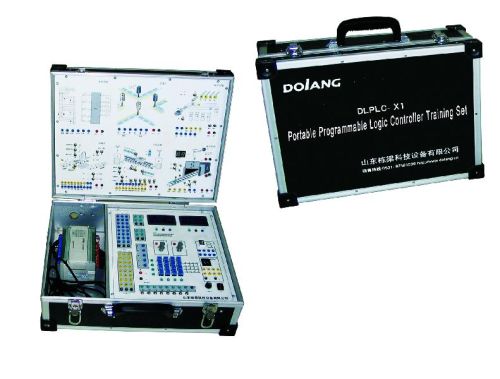

Portable PLC Trainer

Device description：the portable plc trainer;consists of programmable controller area, instruction training area, experimental area and other components. The host is siemens s7-1200 series（optional）, plc with small volume, command rich and high reliability. Devices using high-performance programmable logic controller self-locking socket, all the plc contacts lead to the panel, will not damage the original plc terminals, facilitate for students; operation and commissioning. With a dc switching power supply as the training device I o power. Power supply with short circuit protection, for possible misuse, can ensure that the host;s security. Area controlled object model of a typical industrial control training device is simplified as the programming model. The method described by the pattern of these control processes, and the light-emitting diode display. Each control model printed on surface of international standard size with crisp lines and image.■technical performance● input power: ac 220v 50hz60hz● working environment: temperature -10 ~ +40; relative humidity ;85% (25 ;) ℃ ℃ ℃● structure size: 470 × 370 × 180mm ; ■;experiment content:● motor control simulation training module● water tower level simulation training module●multi-liquid mixture simulation training module● rolling mill simulation training module● mail sorting simulation training module● automatic feeding ; loading production line simulation training module● 7 segment display simulation training module
