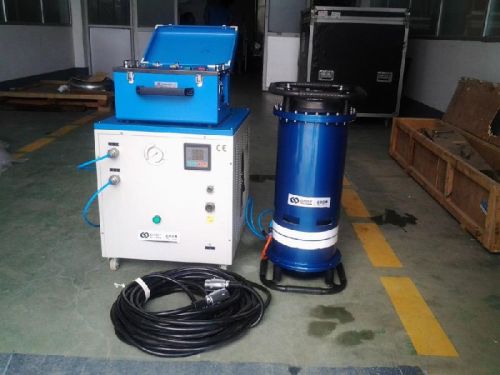

Contact SupplierPortable Real Time Radiography machine with Flat Panel 1 Portable  RTR X Ray source   1) Max output voltage:200kv or above.   2) Max output current:5mA   3) Focal size:2.0X2.0mm   4) Beam angle:40+5 degree   5) Output voltage:100-200KV   6) Total weight:not bigger than 18kg   7) Cooling condition:air cooling 2 Radiography system: Model:XRD 0822AO14 Quantity:1Set Technical parameters: 3 Image processing system Summary:Image processing system mainly used for image displaying, collecting, saving, processing, evaluating, printing and so on. Matching with laser printer, you can record the collected images into disc or print at any time you want, and you can also monitor by connecting with PC. l System operation language:English l Interface:window operation l Picture format:standard bmp format l Basic operation:file opening,file saving,image cutting.copy.stick,rotation,zooming and so on. l Real time inspection:operator can observe the positive and negative plate of dynamic images on the screen directly,And also can adjust the lightness and contrast to achieve the best result. l Integral noise reduction:Can do 8.16.32.64.128 and 256 frames superimposition for noise reduction l Image saving and numbering:Please set the path of image saving (for example: D:\temp) and file name before collects, the collected images will automatically numbering
