PORTABLE SHEAR END WELDER

• Advanced weld carriage designed for fast and accurate welding and low maintenance.
• Manual and pneumatic clamping systems designed for maximum efficiency.
• Posiive Guide three blade pneumatic shear improves quality and reduces blade wear cost.
• Pedal controls ensure ease of use and operator safety.
• Control panel comes equipped with multiple Safety features.
• Exclusive ergonomic design and features to help operators reach higher levels of productivity.
• Engineering and manufacturing services to meet your specific welding needs.

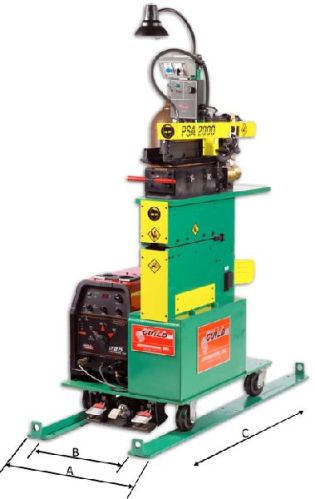

We offer the most compact semi-automatic shearwelder. The PSA 2000 is ideally suited for small tube mill, roll form lines and stamping presses.
The unique “C” frame portable design allows this machine to be used for multiple line regardless of strip flow, cutting it’s already low justification cost in half or even thirds.


A tungsten height gauge is provided that ensures proper setting of the tungsten electrode every time. For proper weld fit up, a built in automatic gauge bar is provided with Guild Patented split elevating backup bars. Competing designs require the operator to manually insert the gauge bar properly and then remove it for every weld.
Providing properly sized air cylinders for clamping provide over 200 more clamping force than others. These cylinders are mounted at the rear of the machine and preventing damage from strip and allowing the operator more work space during welding. Clamping and shearing actuation is by foot valves so the strip can be held with both hands by the operator.
Solenoid operated clamping bar makes for simple automatic torch traverse. This feature eliminates the need for “Jog Forward” and “Jog Reverse” buttons, forward and reverses weld carriage motor relays, and weld start limit switch.
Pneumatic powered three blade shear for distortion free shearing with two (2) die spring loaded stripper pads to hold the strip during shearing for straight cut.
Automatic V.C.R. relay senses that the welding arc is correctly established before the welding carriage is allowed to travel.
Fused Disconnect is standard on all PSA Control Panels. Step-down transformer is also standard. Only one (1) electrical line is required.
Quick Change backup bars are provided. Only one screw at the front of the machine is required to remove each bar. Both L-R or R-L strip flows are handled easily with the automatic built-in gage bar.
