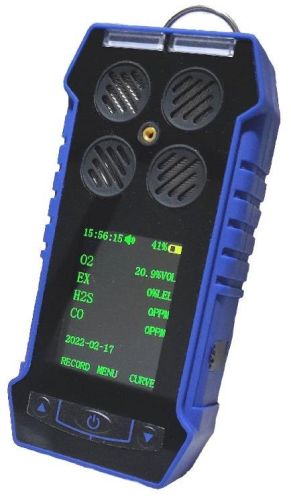

Portable Single/multi Gas Monitor ( Model Ats-103m )

portable single/multi gas monitor ( model ats-103m )

introduction:

portable and multi-gas detector simultaneously monitors and displays up to

five gases. the compact and field tough ats-103m features a non-intrusive

integrated sampling pump designed for performance, reliability and ease-ofuse.

it's optional data logging and computer interface features can be used for

further detailed analysis.

special features:

automatic operation

self diagnostic check

proven sensor technology

continuous, stable alphanumeric

display

customized visual & sound alarms

suitable for use in hazardous area

class-1, div.-1, groups a, b, c & d

zone ‘0’ of gas group iic

diffusion or suction sampling

long life rechargeable batteries

data logging and rs 232 output capability

operation modes: real time always ready

light weight, handy and simple to use

sampling probe

csir-cimfr approved

specification:

gases detected : ch4/lel, o2, h2s, co

measuring range :

ch4: (0.00~5.00)%vol (optional)

lel: (0~100)%lel

o2 : (0~30.0)%vol

h2s: (0~100)ppm

co: (0~1000) ppm

resolution ratio : ch4: 0.01, lel: 1%lel, o2: 0.1%vol,h2s:1ppm, co: 1ppm

sensor : high quality catalytic sensor for lel

electro chemical sensor for h2s, co & o2

sensor lifetime : ≥ 2years

response time : ch4: ≤20s ( t90 ), lel: ≤20s ( t90 ), o2: ≤35s(t90),

h2s: ≤45s ( t90 ), co: ≤45s (t90)

alarms : audible--buzzer with ≥85db @1m audible

visible--flashing red led, ≥20m visible

vibration

alarm point : high and low, fully adjustable

temperature : -25 deg. c to +55 deg. c

continuous working time : ≥13hours

display : liquid crystal display(lcd)

battery : 3.7v/1500ma

charging time : 4-5 hours

dust and water resistance : ip67

size & weight : 136*70*37mm,250g
