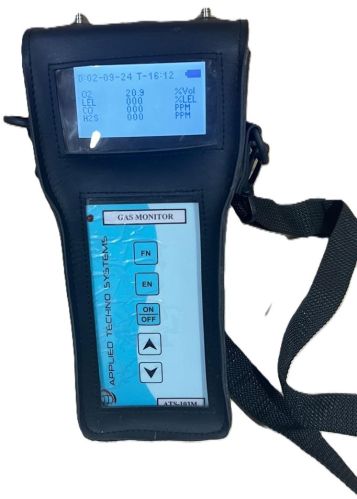

Portable Single/multi Gas Monitor (Model ATS-103M)

PORTABLE SINGLE/MULTI GAS MONITOR ( MODEL ATS-103M )
INTRODUCTION:
Portable and multi-gas detector simultaneously monitors and displays up tofive gases. The compact and field tough ATS-103M features a non-intrusiveintegrated sampling pump designed for performance, reliability and 's optional Data Logging and computer interface features can be used forfurther detailed analysis.
SPECIAL FEATURES:
Automatic OperationSelf Diagnostic CheckProven Sensor TechnologyContinuous, Stable AlphanumericDisplayCustomized Visual & Sound AlarmsSuitable for use in hazardous areaClass-1, Div.-1, Groups A, B, C & DZone ‘0’ of Gas Group IIC
Diffusion or Suction SamplingLong Life Rechargeable BatteriesData Logging and Rs 232 Output CapabilityOperation modes: Real time always readyLight weight, handy and simple to useSampling probeCSIR-CIMFR Approved
SPECIFICATION:
Gases detected : CH4/LEL, O2, H2S, COMeasuring range :CH4: (0.00~5.00)%vol (Optional)LEL: (0~100)%LELO2 : (0~30.0)%volH2S: (0~100)ppmCO: (0~1000) ppmResolution ratio : CH4: 0.01, LEL: 1%LEL, O2: 0.1%vol,H2S:1ppm, CO: 1ppmSensor : High quality catalytic sensor for LELElectrochemical sensor for H2S, CO & O2Sensor lifetime : ≥ 2yearsResponse time : CH4: ≤20S ( T90 ), LEL: ≤20S ( T90 ), O2: ≤35s(T90),H2S: ≤45S ( T90 ), CO: ≤45s (T90)Alarms : Audible--buzzer with ≥85dB @1m audibleVisible--flashing red LED, ≥20m visibleVibrationAlarm point : High and low, fully adjustableTemperature : -25 Deg. C to +55 Deg. CContinuous working time : ≥13hoursDisplay : Liquid Crystal Display(LCD)Battery : 3.7V/1500mACharging time : 4-5 hoursDust and water resistance : IP67Size & Weight : 136*70*37mm,250g
