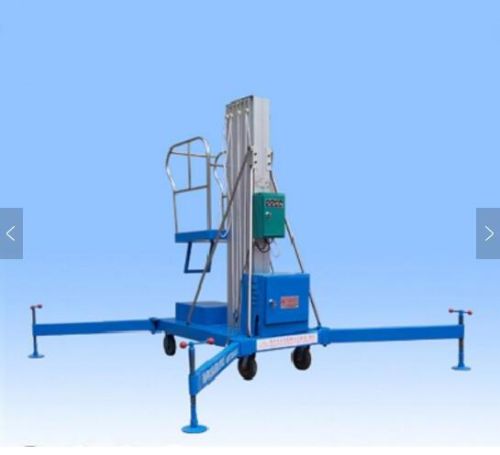

Portable Three Mast Lifting Work Platform

The Aluminum Alloy Type-- Portable Three Mast Lifting Platform This is a kind of multifunctional hoisting equipment. The lifting height ranges from 1 meter to 20 meters. The platform dimension can be customized according to different needs. Self-propelled scissor lift is made of high strength alloy materials, forming a strong structure with very small deflection and swing even in high lifting height. With storage battery for power supply, it doesn`t need external power source, thus achieving a flexible application for anywhere needed. Controlled with a wired pressing button, even only one staff is able to operate to move forward, backward, steer, hoist up and lower down no mater standing on the platform or ground. For outdoor poor working condition, rough terrain scissor lifts are ideal vehicles. Equipped with thick rib tires, four-wheel drive and traction system, it can provide 40% grade ability and stable, safety traveling. Self-balance jack achieve a precise self-balancing only by pressing the button. Product specifications GTJZ06B GTJZ08B GTJZ10B Working height 7.8m 10m 12m Platform height 5.8m 8m 10m Guardrail height-D2 1.105m 1.105m 1.105m Overall width-A 0.76m 0.81m 1.17m Overall height-B 2.18m 2.34m 2.48m Overall length-C 1.86m 2.42m 2.42m Platform height Without handrail-D1 1.075m 1.235m 1.375m Platform dimensions 1.67m×0.74m 2.27m×0.81m 2.27m×1.17m Platform extension length 0.9m 0.9m 0.9m Wheelbase-E 1.31m 1.87m 1.87m Ground clearance-F 0.1m 0.1m 0.1m
