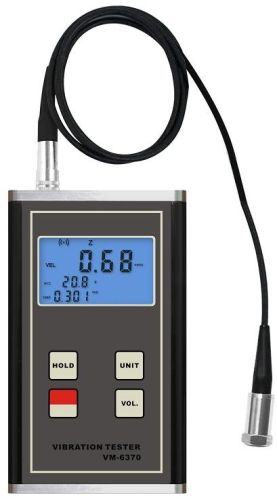

2x1.5V AA(UM-3)Battery Aluminum Portable Vibration Meter VM-6370

Vibration Meter VM-6370

1.Spec:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

2.Features:

* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality accelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

3.Specifications:

Sensor: Piezoelectric Transducer

Measuring Range: Acceleration: 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak

                             Velocity: 0.01~400mm/s 0.004~16.0inch/sTrue RMS

                             Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak

Frequency Range: Acceleration: 10Hz~10kHz

                             Velocity: 10Hz~1kHz

                             Displacement: 10Hz~1kHz

Accuracy: 5% of Reading+2 digits

Operating Conditions: Temperature: 0~50ºC

                                    Humidity:
