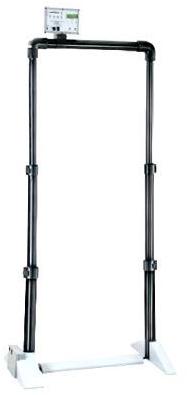

Portable Walk Through Metal Detector

Walk through Metal Detector detects a pistol even when concealed with ferrite rods in all six possible orientations. Two or more Walk through Metal Detectors can operate at the same time and close together Counter - Six digit counters for automatic counting.

Feature:

• Separate LED indicator for Ferrite detection
• LCD Display
• Membrane Touch Switches
• Auto setting
• Search coil made of flexible cable of 200cm x 80cm housed in telescopic extendable PVC pipe frame with quick release clip lever type clutch locking system is contained in a canvas carrying case. The pipes can be joined together to form a doorway.

• The control unit contained in briefcase, Wooden ramp/protection for Search Cable, two side wooden legs along with PVC pipe frame in canvas bag. The entire unit can be assembled within 5 minutes to form a workable door frame metal detector even on metallic road or on concrete floor.
• It can even be installed on any floor of multistoried buildings.  Doorway is made out of PVC pipe with a thickness 3.5mm, diameter 63mm, 50mm impact strength 10kg/cm2. The elbow and socket is made out of unbreakable - toughened nylon glass filled plastic with following sizes: Socket - Thickness 5mm, length - 100mm, Elbow-5mm.
• Control on top of PVC pipe frame with very less no. Of wires
• Micro Processor based technology
• IR Sensors to avoid alarm indication for metal movement outside the frame
• Counter - six digit counters for counting automatically the number of persons passing through the Portable Door Frame Metal Detector
• Detects ferrous & non-ferrous metals even concealed in ferrite
• Search coil housed in Telescopic extendable PVC frame with wooden side supports
• Carrying case for easy transportation
• LED bar graph with high intensity LED
• 0 - 9 sensitivity levels
• LOW Battery indication
• Dual mode operation - rechargeable & dry cells
• Continuous operation - 100 hrs
• Separate LED indicator for ferrite detection

Dimensions

 Search Coil - 200 cm x 80 cm Approx. Control unit in brief case.

Power
Works on 230V AC +/- 15% 50 Hz. & Automatic changeover to two no. of rechargeable 6V 4.5 mAh battery in case of power failure & works continuously for 100 Hrs. in fully charged condition. The Door Frame Metal Detector is also having four dry cells for 10 Hrs. continuous operations. whenever Power Supply is OFF & Rechargeable batteries are fully consumed.

Detection
Detects Ferrous, non-ferrous metals and their alloys, ferrite rods & all metals concealed in ferrite rods (in all six possible orientations) on a person at all speeds i.e. At slow speed and when thrown from one side to the other side.

Sensitivity
Pre programmed Nine sensitivity levels which can be selected by a single selector switch with Low, Optimum, High security levels

Indications
LED bar graph for size of metals with three LED indicators. Separate LED indicator for Ferrite detection.

Audio Alarm

Three tone indications for different size of metal with three distinct colored LED indicator and Fourth tone for Ferrite Detection with LED indicator.

Operating Temperature

- 30°C to 55°C

Counter
Six digit counter for automatic counting. It indicates number of persons going IN, OUT & NET IN.

Infra Red Sensor

Infra Red Sensor is provided to avoid alarm indication for metal movement outside the frame.
