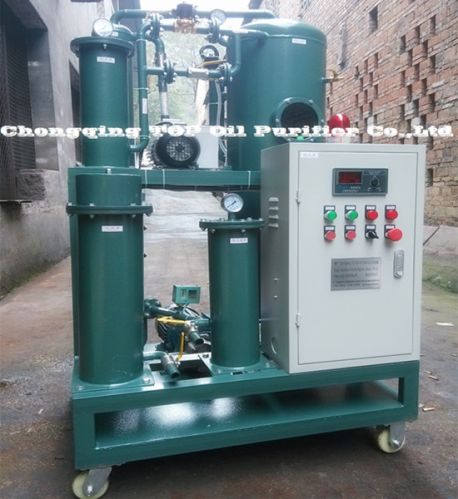

Portable Waste Transformer Oil Recycling Purifier, Brand Name : TOP

Application:
Purify various of unqualified or used insulation oils including aging transformer oil, mutual inductor oil, switch oil. Vacuum dehydration and degasification as well as filtering. Also it can inject the insulating oil into transformers.
Features:
1. Small size. Low cost. Most populler Can live operated with electricity, vacuum oil and dry power equipment.
2. Bi-infrared liquid Duplex 3D stereo-evaporation technology to dehydrate and degas oil effectively.
3. Oil of any grades can be treated on line at working site
4. Can not only work independently but also with oil regeneration system.
Technical Parameter:
Parameters (Unit)ZY-6 ZY-20 ZY-50 ZY-100 ZY-200 ZY-300
Flow rate (Lhr)360 1200 3000 6000 12000 18000
Vacuum degree(Mpa) -0.06~-0.095
Working pressure (Mpa)
0.3 0.4 0.5 0.5 0.5 0.5
Temperature range(C) 20~ 80
Continuous working (hr) 150
Power supply 3 phase,50Hz,380V(Or Customizable)
Working noise dB(A)
60 61 70 75 70 70
Heating power Kw 9 11 30 48 70 85
Total power Kw 9.7 12.5 33.5 53 76 94
Oil inletoutlet(mm) 20 25 32 42 50 60
Weight Kg 150 230 300 500 900 1100
L mm 970 1050 1200 1600 1800 1900
Size W mm 630 750 950 1000 1200 1200
H mm 900 1300 1500 1800 1900 1900
