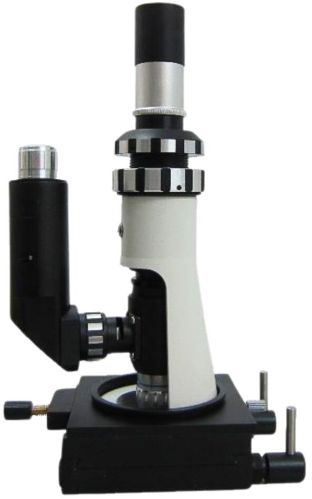

Portmet Portable Metallurgical Microscope is mainly used in field to identify the structures of all kinds of metal and alloy when failure in making sample. It adopts a rechargeable vertical LED illuminator, which provides even and adequate illumination. It can work more than 40 hours after one charge.
The magnetic base is optional, it can be adsorbed solidly on the work piece, it is adapted to various diameter pipes and flat, the magnetic base can be adjusted from X, Y directions. Digital cameras can be used with the microscope for image, video capture and analysis.
Eyepiece Plan eyepiece 10×/18mm
Objective Long work distance plan objective: 10×/0.25, WD7.3mm; 50×/0.70, WD 0.5mm
Total Magnification 100×, 500x
Mechanical tube length 160mm
Focusing range 20mm
Illumination Adjustable LED light(chargeable)
