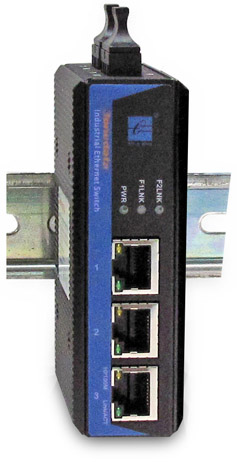

Ports Ethernet Switch - (2 Optic Ports+3 Tp)

Specification:
interface
rj45 ports: 10/100baset(x) auto connection, full /half duplex or force work mode, and support mdi/mdi-x connection
fiber ports: 100basefx ports (sc/st/fc connector, optional)
single-mode:20, 40,60, 80, 120km,optional
multi-mode: 2,5km,optional
wavelength: 850nm, 1310 nm, 1550nm
technology
standard：ieee802.3, ieee802.3x, ieee802.3u
forwarding and filtrate rate: 148810pps
transmit type: store and forward switching process type
support 1k mac address
power
input voltage: 12vdc~36vdc,
overload current protection
connection: 3 bit terminal block
mechanical
dimensions (l×w×h): 103mm×78mm×32mm
packaging: ip 30 protection, metal case
environmental
operating temperature: -40 to 75°c
storage temperature: -45 to 85 °c
ambient relative humidity: 10% to 95% (non-condensing)
approvals
emi：fcc part 15, cispr (en55022) class a
ems: en61000-4-2(esd),
en61000-4-3(rs),
en61000-4-4(eft),
en61000-4-5 (surge),
en61000-4-6 (cs),
en61000-4-8,
en61000-4-11
shock: iec 60068-2-27
free fall: iec 60068-2-32
vibration: iec 60068-2-6
warranty: 5 years
approvals: fcc,ce, rohs approvals.
