Pos Machines

The company has come up as one of the most promising Suppliers of Pos Machines in Visakhapatnam. The Pos Machines, offered by the company, consist of a LCD with touch panel and have attractive features like on-board sound. The company procured the Pos Machines from some of the highly trusted sources and makes sure that the delivery is always on time.

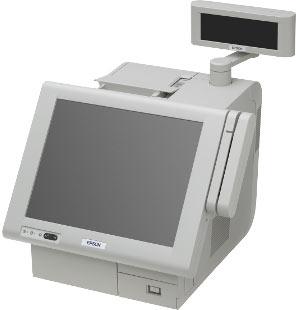

Model : Epson IR-700

Features

• Contemporary and compact, user-friendly design : Stylish and elegant, the IR-700 has the smallest footprint in its class, and allows horizontal or vertical positioning to suit your needs. Ergonomically designed, it is available in a choice of stylish dark grey or cool white to complement any retail or hospitality environment. The large high-durability, scratch and water resistant LCD touchscreen is clear and easy-to-read, and so intuitive that transactions can be processed faster, reducing queuing times and improving customer service.

• Single mains power plug : For fast and simple installation, easy in-store portability, reduced costs and clutterthe IR-700 has just one mains power plug. It also has an in-built smart cable management system to help keep your point of service tidy and minimise the risk of accidental disconnection.

• The complete solution : The IR-700 is equipped with a superb range of standard peripherals and features to enable you to deliver the highest standards of service to your customers. It is Chip & PIN compatible, and optional features include easy-to-read customer display, Magnetic Stripe Reader (MSR) and a fully-programmable PoS keyboard. With the latest Intel M processor at its heart, the IR-700 provides the perfect platform for some of the most widely used technologies available such as Internet and thin client architectures. Its wide range of interface options include serial, parallel, USB, Ethernet and wireless.

• Reliable and easy-to-maintain : The IR-700’s processor and components have been carefully selected to reduce power consumption, which substantially increases its reliability and longevity. Unique tools enable the IR-700 to be maintained remotely via the internet, ISDN or LAN, helping to keep service costs down and ensure minimum business interruption.

Specifications

• CPU : Intel CeleronM 1.3GHz, Intel PentiumM 1.8GHz

• Memory : 2 DIMM slots (1GB max)

• Storage

  • FDD (1.44 / 3.5" USB external) can be connected

  • DVD-R, CD-R / RW (USB external) can be connected

  • 1 HDD (3.5", 25.4mm) or 2HDD (3.5", 25.4mm) optional

  • CompactFlashR card slot (on motherboard)

• Slots : PCI x 2

• I/O Ports

  • COM port x 6

  • 4 external with 5V & 12V power

  • 2 internal for printer / customer display

  • Mouse port (PS / 2 mini DIN x 1)

  • Keyboard port (PS / 2 mini DIN x 1)

  • CRT port

  • Customer display port (rear)

  • Drawer port x 1

  • Parallel x 1 (does not support OICA)

  • USB port x 4 (version 2.0)

  • Ethernet x 1 (10 Base-T / 100 Base-TX)

• Sound : Sound on board

• Others

  • Power connector for TM printers, 24V

  • Power switch soft switch on front for power off

  • Power supply built-in, 100-240VAC (universal)

• BIOS : APM 1.2 / ACPI 2.0 / Plug & Play 1.0A / SMBIOS 2.0

• OS options

  • Microsoft® Windows ® 2000 Professional,

  • Windows ® XP Professional,

  • Microsoft ® Windows Embedded for Point of Service (WEPOS) English version

• Printer options

  • 56 column thermal (80mm paper roll)

  • Printer dummy cover

  • Printer tray for TM-T90 / L90

• Customer display options

  • 20 columns x 2 lines

  • Graphic customer display (VFD 256 x 64 dot)

  • Standard clamp pole

  • Extended pole (244mm)

• LCD with touch panel

  • 12.1" TFT SVGA (800 x 600)

  • 15.0" TFT XGA (1024 x 768)

  • On board Sound

• Size : 250mm x 340mm x 254mm (w x d x h) including cable cover

• Optional units : MSR unit ISO 1+2+3 tracks fixed to LCD display Vertical stand Vertical stand for IR-700 Powered USB board 5V / 12V / 24V (3 ports) Keyboard 28 keypad (programmable) 60 keypad (programmable) with USB port x 2 (version 1.1) Wireless LAN board Wireless network interface card (IEEE802.11b/g)

• Warranty Standard : 1 Year Return to Base Optional CoverPlus 3 years on-site
