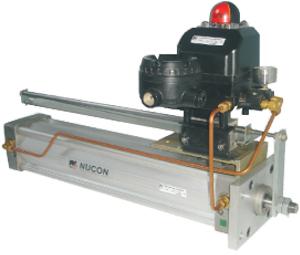

Positioner Cylinder

Pneumatic control :0.2 to 1 bar
Electrical control :4 to 20 mA
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

NUCON Power cylinder ZNCN/29000 series consists of a double acting cylinder, positioner (either pneumatic control / Electro pneumatic control) and suitable link mechanism. The mountings at....

View More Details

Send Enquiry

Company Information

Nucon Pneumatics

Balanagar, Hyderabad, Telangana

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

NUCON Power cylinder ZNCN/29000 series consists of a double acting cylinder, positioner (either pneumatic control / Electro pneumatic control) and suitable link mechanism.

The mountings at rod end and cap end are customized.

NUCON Power cylinder has been designed to operate as an actuator in pneumatic control system to position the actuator in accordance with the control signal.

Design Features:

		Wide range of bore sizes from 32mm to 14"

		Strokes up to 1500 mm.

		IS0 6431 standard cylinder from 32 to 200 mm

		Above 200mm with NUCON standard/customized cylinder

		Wide choice of rod end and cap end mountings

		Linear characteristics are standard

		Special characteristics are optional

		Easy reversal action

		Direction of piston movement in relation to signal can be reversed by the reversing the cam and rerouting the piping

		Customized versions with additional accessories are on request

Additional Features:

Manual override attachment with clutch

Air-lock valves to obtain fail safe stay put position

Volume boosters to increase stroking rate

Limit switches

Position transmitters

Gaiter for piston rod protection

Material of Construction :

	Cylinder Barrel

	Aluminium alloy, fine drawn, calibrated, and hard anodized up to 200 mm
	Carbon-steel, finish honed and hard-chrome-plated above 200mm

	Piston Rod

	Stainless steel AlSl 420 up to 200 mm bore
	Medium carbon steel grade En8 above 200mm

	End covers

	Aluminium die casting up to 200 mm bore
	Cast-iron /Zinc plated Mild steel above 200 mm bore

	Link mechanism

	Zinc plated carbon steel

	Seals

	NBR (standard )
	Viton (Optional on request)

Material of Construction :

	The Power cylinder is a standard pneumatic cylinder whose stroke positioning is regulated by pneumatic/electro-pneumatic feed back signal. The stroke positioning is made by altering electro pneumatic control signal value (4 mA for zero stroke and 20 mA for full stroke). In between stroke is proportional to the band width of 16mA. Similarly in Pneumatic control positioning the signal of 0.2 bar for Zero stroke and 1 bar for full stroke

	The Positioner and the Link mechanism are fitted on the top of the cylinder with a rigid bracket. The link mechanism is connected to the piston rod. The feed back cam moves along with the piston rod and provides the feedback signal to the positioner to position the cylinder in line with the control signal

Accessories :
