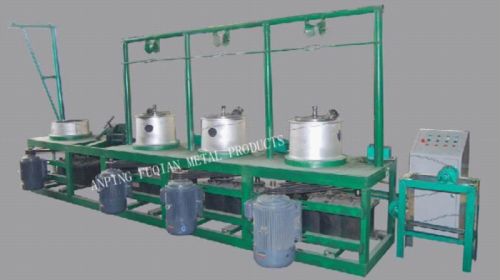

Pot Link Wire Drawing Machine

We are offering pot link wire drawing machine.
pulley type continuous wire drawing machine
this drawing equipment consists of main reduction box,casting pot,wheel frame,wire brace and electrical control system. The spining drawing blocks are driven by jzt or y series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.the gear are lubricated with oil.in order to lower residual heat on the surface of the block,the cooling means is installed in interwall of the block.
the machine runs with linkage. The safty halt gear is installed in interwall of the block.
usage: this drawing machine is an ideal equipment drawing wire of high,medium and low carbon steel,as well as copper,aluminum and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
link-pot drawing machine technical data:
5pots 4pots 3pots 2pots
pot dia(mm) 550-600 550-600 550-600 550-600
max inlet wire(mm) 4 6.5 6.5 6.5
min outlet wire(mm) 1.9 3.5-4 4.5-4.2 5
mould (pcs) 5 4 3 2
max speed (m/min) 216 120-160 120-160 120-160
motor power (kw) 60 48 37 31.5
lubricate method drawing powder.
