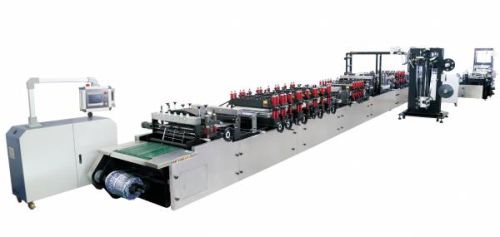

BOPP Pouch Bag Making Machine

Function: 4 lane quad flat bottom pouch without zipper bags
4 side seal bags
3 side seal bags
accumulator system, non-stop machine when material changing
speed：70shorts for one minute
min. To max. Bag size:100--200mm(height), 80--150mm(width),side gusset and bottom gusset open size:40--140mm
yield: more than 95%.
System: plc, two separate control system and automatic, touch screen, controlled with 14 servo motor and manipulator feeding side gusset
model no.jdm650-sfl main specification
scope of application function:4 lane quad flat bottom pouch without zipper, 4 side seal bags, 3 side seal bags.
Materials applied: bopp,cpp,pet,pe nylon, aluminum-plated paper-plastic laminated film
original film size: max. Width 1320mm,max. Diameter:¢800mm(paper core diameter ¢76mm)
dimension of sides and bottom film: width 288mm,max. Diameter: ¢ 600mm
dimension and speed of bag-making bagging speed:10~70 cutsmin(depending on bag size, thin film materials, and other factors to set reasonable speed)
bag size:
4lane:length=100~200mm,width=180~150mm,sides depth=20~70mm,bottom depth=20~70mm
driving type main drive: shaft eccentricity
main motor:5000w japan panasonic servo motor
infeeding:9 groups of japan panasonic servo motor
die cutting:1 groups of japan panasonic servo motor
gusset:3 sets of japan panasonic servo motor
film cutter:1 set of japan panasonic servo motor
bottom feeding:1 set of japan panasonic servo motor
sealing feature latitudinal hot sealing:10 groups,hot bar length 740mm,
upper and lower heating plate power:3500w
latitudinal cooling:2 groups, cooling bar 740mm
voltage & total power three-phase voltage 380v+10% 50hz total power:78kw
control mode temperature control: pc control system controls; plc control
overall dimension length x width x height=18500mmx4200mmx2300mm
