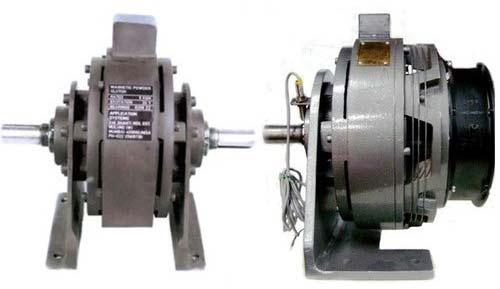

Powder Brakes and Clutchs

We are offering Powder brake and clutch
Magnetic Particle Brakes & Clutches are popularly known as Powder brakes & clutches. These powder brakes & clutches are manufactured by us in wide range from tiny 0.1 KgM, (1 Nm) to massive 500 KgM (5000Nm) torque range These are manufactured in self cooled, forced air cooled & water cooled version. Powder brakes & clutches are real torque control device, meaning braking or clutching torque is strictly proportional to excitation current, The magnetic powder clutch and brake achieves at low control power a high torque being independent from the slip speed. It distinguishes itself by a simple construction, low weight and small required space. Due to this advantage the clutch brake is used for the solution of many technical problems. For the various applications also appropriate control devices are necessary. By changing the exciting power force, the torque to be transmitted can be adjusted infinitely variable in the range 1:30 The Powder Brakes & Clutches contain, as their name suggests, a magnetic powder. The electrical current passing through the coil generates a magnetic field, which changes the property of the powder, from free flowing condition at no excitation to solid rock condition at full excitation. Thus producing a smooth braking torque through friction between rotor and stator. The Powder Brakes & Clutches produces their rated torque at zero speed. The element to be tested Clutched, can be loaded at standstill to determine the starting torque.
