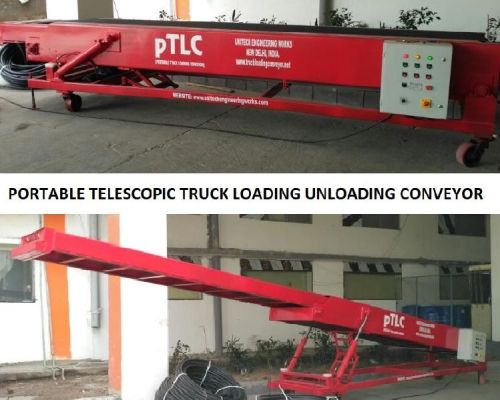

Telescopic Truck Loading Unloading Conveyor, For Moving Goods, Rated Power : 5-7 KW

₹ 9 Lakh - ₹ 18 Lakh / Each

MaterialM.S. Fabricated
Driven TypeMotor
FinishingPowder Coated
Belt MaterialPVC
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

ConditionNew
Driven TypeMotor
Belt MaterialPVC
PhaseThree Phase
Corrosion ResistanceYes
Speed AdjustableYes
Machine MaterialMild Steel
After-Sales Service ProvidedYes
Operating Speed20Mtr/min
Motor Telescopic MovementYes
MaterialM.S. Fabricated
FinishingPowder Coated
Machine Weight1200kg
Rated Power5-7 KW
Packaging TypeCarton Box
Belt Length20-30 Feet
Belt Width20-30 Inch
Loading Capacity45-50 Kg
UsageMoving Goods
SpecialitiesVibration Free, Long Life, Excellent Quality
Dimension (LxWxH)5000x1000x900
Number Of FlowerTelescopic Truck Loading Unloading Conveyor
Brand NameUNITECH- pTLC
ShapeRectangular
Country of Origin440V
Place of OriginNew Delhi, INDIA
StructureMild Steel
Model NumberUEW-PTLC-9

Portable telescopic truck loading unloading conveyor (TLC) is suitable for loading unloading bags boxes etc. Packed products from trucks, containers, lorries etc. Facilitating easy, faster and safe handling of packed products. Thereby saving time, manpower and operating cost and reduction in labor. Telescopic design of the conveyor helps in operator friendliness and ease of loading & unloading as per operator requirements. Conveyor fixed length is 5mtr. And expanded length of 4mtr. thus total open length of conveyor - 9mtr. Height of the conveyor can be adjusted from 2.5ft to 8.0ft belt speed - 30mtr. minute load carrying capacity - 50kg mtr. Heavy duty machine on heavy cast iron pu coated wheels makes the machine portable and usable at different docs.
