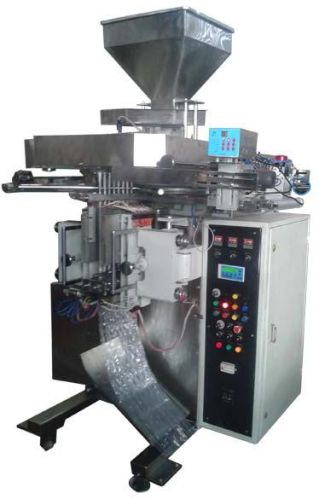

We are offering Powder Packing Machine
Technical specification of ap-408:
machine out put pouch
400pouch per min.
No. Of tracks
8tracks or 8line ( depend on pouch width )
stroke speed
upto 50strokemin.
Pouch length
40mm to 125mm adjustable
pouch width
fix
vol. weight
01gm to 10gm
product
sugar
pulling mechanism
clutch & brake paper pulling
unwinding system
motorized unwinding system
sealing system
mechanical cam driven heat sealers
reel width
800mm
reel dia
430mm
core dia
75 mm
connecting load
6 kw, 440 v. ± 6% 3 ph. 50 hz
air required
6cfm
feeding system
volumetric slide cup filler
sealing system
continuous heat sealing
types of packing
4 side seal pouch
packing material
any flexible laminate, aluminum foil etc
machine weight
1800 kg (approx)
machine dimension
2.4 x 1.5 x 2.5 mts (l x w x h)
temperature controller
pid (programmable integral derivative) based
machine control
plc (programmable logic control) based
optional attachments (at an extra cost)
electronic coding deviceemboss coding ( optional )
