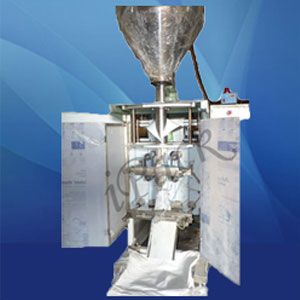

Powder Packing Machine

Applications:

• Powders (Free and Non-free flowing), such as Spices, Soup Mixes, Detergents, Yeast, Desserts, Pharmaceutical and Agricultural Powders, Flour (Atta), Cocoa Powder, Drinking Chocolate, Coffee, Sugar.
• Filling Range: 50 gms to 2500 gms. Depending upon bulk density of products.

• A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing/non-free flowing powders.
• The model AF-1000 handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a Variable Frequency Drive. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel.

• PLC controls with HMI

• Draw-Dawn Belts Driven by Variable Frequency Drive.

• Adjustable draw down belts

• PC uplink facility (optional)

• Password protection for settings (optional)

• Facility of production count.

Attachments: Infeed conveyor. Outfeed conveyor, Batch coding machine, Static charge removal system, N2 Flushing, Air removal system, Batch cutting attachment, Different sealing patterns, Different Pouch Cutting Attachments.
