Vertical Powder Packing Machine

We are offering powder packing machine.

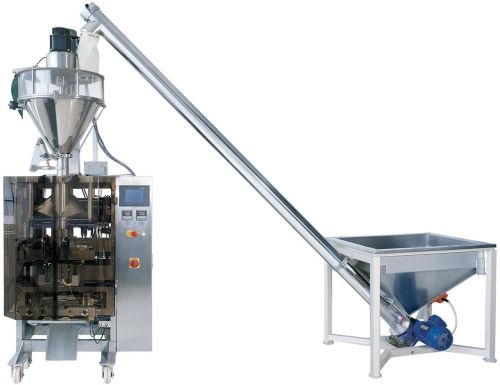

hs-398d powder packing machine system specification
applications
suitable for measuring the powder materials .such as milk powder and chemical powder
specification
speed :15- 80bags/min
bagsize:
50-300mm l
60-200 mm w
film thickness: 0.04-0.08mm
power : 2.0kw/220v
machine weight450machine dimension:
(l)1400*(w)950*(h)1600mm
the system includes five parts:
hs398 basic machine
hs- screw conveyer
hs-auger filler machine
finished products conveyor
oil-free air compressor
the major performance and structural feature
plc control with touch panel-step by step instruction.equipped with servo winding system,pneumatic control system.
The maximize to improve the whole machine precision, reliability and stability.
Use intellectual temperature controller,the high temperature control to ensure neat sealing.
The perfect automatic alarm safety protection,little waste.the machine will automatically complete all packaging processes from feeding, measuring, filling, printing ,finished bag.
technical characterisics:
the machine adopt servo motor control,screw measuring,precision 1%.
Adjestment product weight without any tools.
Application:
suitable powder packing .flour,milk,powder,coffee powder,feed,fine powder etc.
4.features of hs- screw conveyor
introduction: this machine adopt screw conveying material, and the storage can be vibrated . It is suitable for conveying various powder and little pellets
technical specification:
lifting height 2.2m-10m
lifting volume 3 cubic meter/hour
model hs-d2
specification making according to the specifications of the buyer
material carbon steel, stainless steel
technical index 1.the size and weight of the conveying material.
2. Conveying speed and height.
