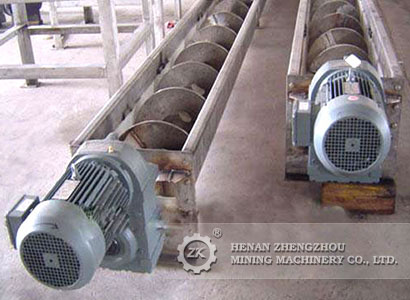

Powder Screw Conveyor

Screw conveyor is a kind of continuous conveying equipment without flexible traction mechanism. It mainly used to convey powder, granular and small lump material which is less viscous and hard blocking, such as coal, slag, cement, grain and etc. It can be widely used in building materials, chemicals, power, metallurgy, coal and other industries.
Screw conveyor generally used for continuity conveying bulk materials in short distance at horizontal or slightly oblique (angle βâ�¤15 °) direction. It can mix and stir the material during conveying. The working environment is -20 ~ 50 �, and the material should be less than 200 �. Its design and fabrication meet the professional standards in JBT7679-2008-"screw conveyor". The hanging bearing adopts the two structures of rolling and sliding interchangeable. It has low resistance, strong sealing and good wear resistance.
Our products advantages:
1.It achieved clean and environmentally friendly production, especially suitable for conveying dusty, hot (under 200 �) and sharp odour material.
2. The wear treated screw is more wearable and stronger than traditional common screw. It can significantly increase the service life of the screw
3. It can achieve multi-point feeding and multi-point discharging according to user's process layout.
4. The redesigned discharging structure makes the discharging smoother.
5. Compact structure, less wearing parts, convenient to install, operate and maintain.
LS series screw conveyor is mainly composed by screw, chute, hanging bearings, driver, supports, inlet and outlet. The main structural characteristics of each part are:
1. The head and tail bearing are arranged outside the chute. It avoids dust entering the bearing and convenient to install and maintain;
2. The optimized screw solved the material blocking problem at the outlet;
