Contact SupplierWe are offering power adapter,.

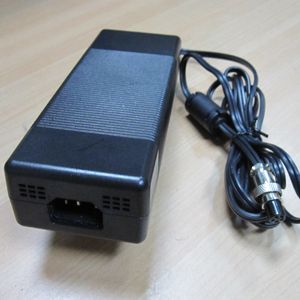

16v6a smps/psu 96w power adapter ,switching mode power supply ,with ul.cul,fcc,pse,ce,gs,cb ,kc certification ,rohs,efficiency level v .
specification details:
maximum output power: 96w
input voltage: 90~264vac
input frequency: 47hz~63hz
input current: 1.5a
leakage current (max): 0.30ma
no load power consumption: less than 0.3w
efficiency: meet cec
ripple noise (max): +1% voltage max
line regulation: ±1%
load regulation: ±5%
hold-up time: 16ms
over voltage protection: 120%
operating temperature: 0~40°c
storage temperature: -20~85°c
storage humidity: 5%rh~95%rh
withstand voltage: ac 3kv
burn-in test: 100% full load
mtbf: 50000hours
weight: about200g
dimensions
lxwxh: 175x65x45 (mm).
