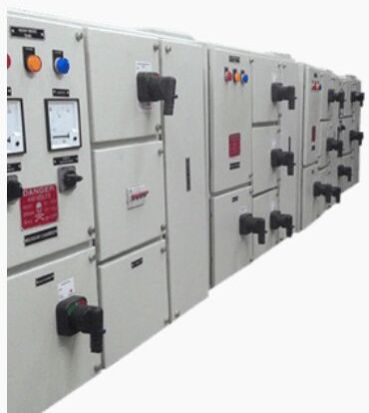

Power Distribution Panel for Industrial Use

Application: Protection and Control Power Distribution System.AC Rating Volts: 0 – 500V.AC Rating Amps: 100 – 4000A. ( Based on customer’s requirement.)AC Rating Frequency: 50Hz.Rated Insulated Voltage: 690V.Temp. Rise Up to: 35°C Rise over 50°C ambient.Degree of Protection: IP 52, 54, 55, 65.Power Busbar Size: Al. or Cu. Busbar.Over current Protection: Properly.Enclosure Painting: 7 tank Powder Coated Paint and as per Client’s requirement.Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame.Current Monitoring: Possible.Phase Monitoring: Configuration: Possible.Type Test performance: Short Circuit with Stand temp. rise with stand, Degree of Protection.Product Warranty: 12 Months from Date of Supply
