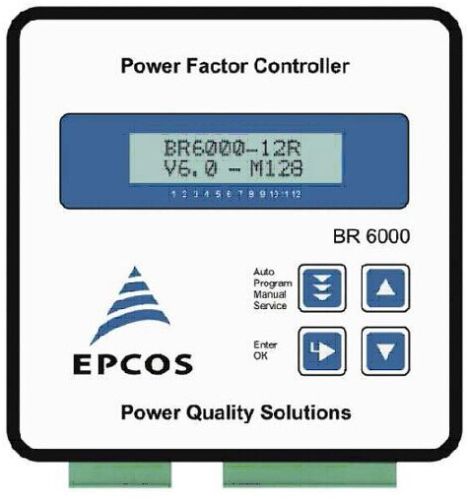

Power Factor Correction Br 6000 Controller

Get Latest Price

Mounting PositionAny
Cut Out138 X 138 Mm
Operating Temperature-20 ... +60 °C
Storage Temperature-20 ... +75 °C
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Akanksha power and infrastructure limited

Satpur Midc, Nashik, Maharashtra

View Number

Member Since 1 Year
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Maximum Current5.3 A (sinusoidal)
Zero Voltage Release< 15 Ms
Operating Temperature-20 ... +60 °C
Minimum Operating Current40 MA / 10 MA
Cut Out138 X 138 Mm
Spurious RadiationEN55011 10.1997
Storage Temperature-20 ... +75 °C
Target Cos Phi0.3 Ind. ... 0.3 Cap.
Dimensions144 X 144 X 55 Mm
Mounting PositionAny
Weight1 Kg

Characteristics
Intelligent control
Menu driven handling (plain language; Czech/Dutch/German/English/French/Polish/ Portuguese/Russian/Spanish/Turkish)
Self-optimizing control capability
Automatic initialization
Test-run possible
Large voltage measuring range
Recall function of recorded values
Four-quadrant operation (e.g. stand by generator)
Powerful alarm output
2nd parameter set
13 steps possible with version /S
Control series editor
Detailed expert modes

Display	Large and multifunctional LCD (2 × 16 characters) Graphic and alphanumeric LCD illumination
System parameters displayed	System voltage (V AC) Reactive power (kvar) Active power (kW) Frequency Apparent power (kVA) Apparent current (A) Temperature (°C ) Real-time cos phi Target cos phi Kvar value to target cos phi Harmonics (3rd … 19th) V (%), I (%) Energy (Kvar)
Alarm output	Insufficient compensation Overcompensation Undercurrent Overcurrent Over temperature Harmonics Threshold value programmable Internal error storage 2nd signal relay random
Recall recorded values	Maximum voltage (Vmax) Minimum voltage Maximum reactive power, Q (Kvar) Maximum active power, P (kW) Maximum apparent power, S (kVA) Maximum temperature (°C) Maximum THD-V/THD-I Switching cycles of capacitors Operation time of capacitors
