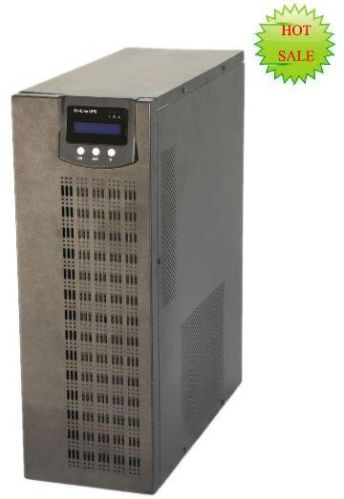

Power Master Series Online Hf Ups1-6kva, Packaging Type : black

We are Offering Power Master Series Online Hf Ups1-6kva, is of Fully of Advanced Dsp Online Hf Ups. It Has High Adaptability ,Performance ,Compact Design and Less Batteries to Reduce Your Space and Installation Cost.
perfect Application:
network, Data Centre, Servers and Workstations, Control System, Communication System and Office Etc.
main Features:
1)high Frequency and Double Conversion
2) Fully Digitized Control
3) Output Power Factor: 0.8
4)wide Input Range
5) Dc Voltage Flexible
6) Environment Protection
7) Smart Rs232(snmp Card Optional)
8)cold Start
9) Compact Design
10) Lightening and Surge Protection 1050j
technical Specification:
model pm1000 pm2000 pm3000 pm5000 pm6000
capacity 1kva/0.8kw 2kva/1.6kw 3kva/2.4kw 5kva/4.0kw 6kva/4.2kw
phase single,2 Wire+ground
ac Input
p.f above 0.98
thdi
voltage Range 110-285vac(50%load),160-285vac(full Load)
or 90-150vac(1-3kva)
frequency Range 40-70hz
by-pass 180vac—260vac
or95-140vac(1-3kva)
frequency Following 50/60hz+/-5%
battery dc Voltage 24/36vdc 48/72vdc 72vdc 120vdc
quantity 2/3pcs*12v 4/6pcs*12v 6pcs*12v 10pcs*12v(9ah Or12ah)
recharge Voltage 27/41vdc 55/82vdc 82vdc 137vdc
type free Maintenance Lead-acid Battery
recharging Current 8a/1a 6a/1a
output
p.f 0.8 0.7/0.8
voltage 220/230/240 Vac +/-1%
or110/120/127vac+/-1%(1-3kva)
frequency 50/60hz+/-5hz(line Mode),50/60+/-0.2hz(battery Mode)
crest Factor 3:1
wave Distortion linear Load
