Contact SupplierWe are offering Power Relay.

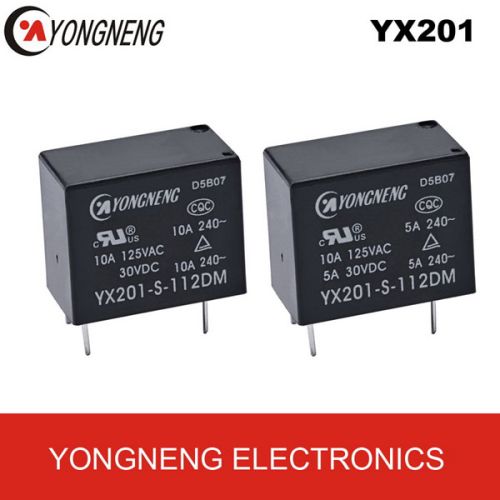

general purpose power relay (item no. Yx201-dm)
contact data
model no. yx201-dm
contact arrangement 1a
contact resistance 50mω max.
contact material silver alloy
contact rating (resistive load) 5a 250vac;
max.switching current 5a
max.switching voltage 277vac
max.switching power 1250va
mechanical endurance 10000000 ops
electrical endurance 100000 ops
coil data
nominal coil voltage (vdc) 3,5,6,9,12,18,24
nominal operating power 0.45w,0.2w,
characteristics
operate time 10ms max.
release time 5ms max.
insulation resistance 1000mω max.(500vdc)
dielectirc strength "between open contacts: 1000vac, 50/60hz 1min.
between coil&contacts: 4000vac, 50/60hz 1min."
vibration resistance "destructive: 10~55hz, double amplitude of 1.5mm
functional: 10~55hz, double amplitude of 1.5mm"
shock resistance "functional: 10g min.
destructive: 100g min."
ambient temperature -40c-105c(not condensing)
weight approx.5.5g
