POWER SHEILD EXPANSION BOLTS

POWER SHEILD EXPANSION BOLTS

Get Latest Price

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

SPECIAL TECHNICAL ASSISTANCE Pull out loads are for M200 cement concrete. The recommended distance between the edge of any platform and the drilling position is a maximum of six times the diameter of the hole. Factor of safety recommended is of : Uniform load = 4,Shock loads = 8. Non standard sizes and H.T.Bolts can be made on request. SWL is with Factor of safety of 1 : 4 for static loads. Right to alter design dimensions remains with the manufacturer.

View More Details

Company Information

Resguardo Industries

Kanakapura, Bangalore, Karnataka

Member Since 9 Years
Nature of Business Retailer
Year of Establishment 2012

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

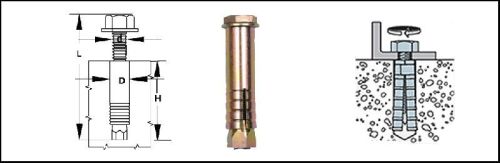

Size Prefference mm	Bolt Dia(D) mm	Overall Bolt Length(L) mm	Drill Dia(d) mm	Depth Of Hole(H) mm	SWL(kgs)	Pull Out Load(kgs)
M6 X45	6	50	10	50	245	975
M8 X 60	8	60	12	560	325	1300
M10 X 70	10	70	16	70	575	2300
M12 X 80	12	80	19	80	950	3800
